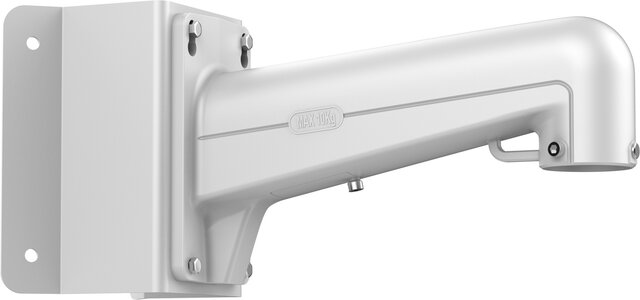

MOUNTING CORNER BRACKET FOR IR SPEED DOME

Model: HikVision DS-1604ZJ-Corner

Corner Mounting Bracket for Speed Dome

Features

• Corner mounting bracket
• Aluminum alloy & steel material with surface spray treatment
• Waterproof design
• Supports bottom outlet & back outlet
• The hook for safety rope facilitates speed dome’s installation

Specifications

• Appearance: Hikvision White
• Material: Aluminum alloy & steel
• Dimension: 465 x 206.8 x 261.8mm
• Weight: 4.3Kg

Notes

• The bracket should be installed on the flat surface
• Waterproof rubber is necessary for the outdoor application
• The wall must be capable of supporting at least 3 times as much as the  total weight of the speed dome & bracket
• The bracket’s maximum load capacity is 10Kg
