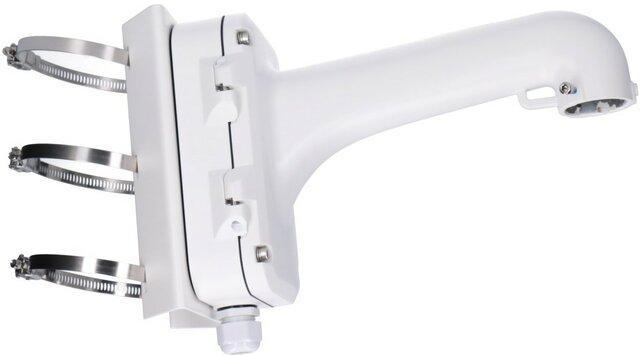

VERTICAL POLE MOUNT BRACKET FOR SPEED DOME CAMERA

Model: HikVision DS-1604ZJ-POLE

Vertical Pole Mounting Bracket for Speed Dome

Features

• Vertical pole mounting bracket with the junction box
• Aluminum alloy and steel material with surface spray treatment
• Adjustable diameter from 67 mm to 127 mm
• Supports bottom outlet and back outlet
• The hook for safety rope facilitates speed dome’s installation

Specifications

• Appearance: Hikvision white
• Material: Aluminum Alloy and Steel
• Dimensions: 355.5 mm × 261.8 mm × 170.7 mm (14″ × 10.31″ × 6.72″)
• Weight: 3.8 kg

Note

• The bracket should be installed on the flat surface.
• Waterproof rubber is necessary for the outdoor application.
• The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
• The bracket’s maximum load capacity is 10 Kg
