VERTICAL POLE MOUNT W/JUNCTION BOX BRACKET FOR SPEED DOME CA

Model: HikVision DS-1604ZJ-BOX-POLE

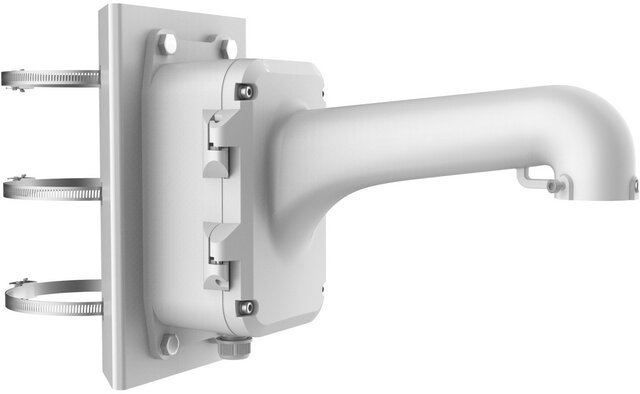

Vertical Pole Mount for Speed Dome

Features

• Vertical pole mount with the junction box
• Aluminum alloy and steel with surface spray treatment
• Adjustable diameter from 100 mm to 200 mm
• Bottom outlet, and back outlet
• Able to place the power adapter (AC 24 V, 3 A) in the junction box
• The hook for safety rope facilitates speed dome’s installation

Specifications

• Appearance: Hikvision white
• Material: Aluminum Alloy and Steel
• Dimensions: 456.5 mm × 314 mm × 194.9 mm (17.97″ × 12.36″ × 7.67″)
• Weight: 5.7 kg

Note

• The mount should be installed on the flat surface.
• Waterproof rubber is necessary for the outdoor application.
• The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome, and the mount.
• The mount’s maximum load capacity is 10 kg.
