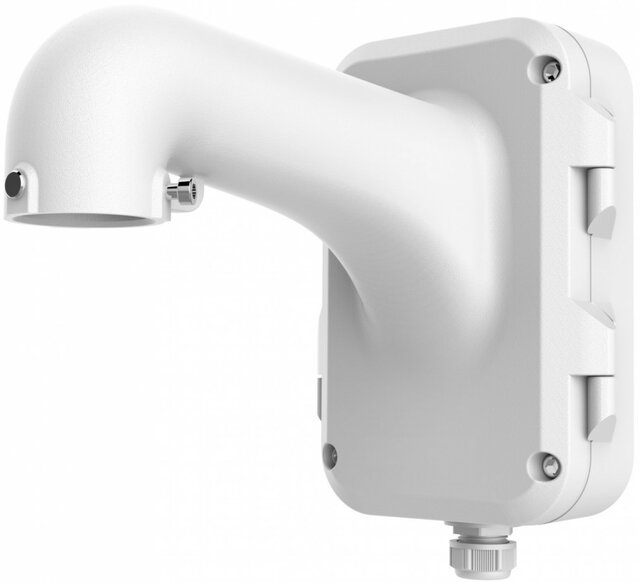

WALL MOUNT BRACKET FOR SPEED DOME CAMERA

Model: HikVision DS-1604ZJ

Wall Mounting Bracket for Speed Dome

Features

• Wall mounting bracket
• Aluminum alloy material with surface spray treatment
• Waterproof design
• The hook for safety rope facilitates speed dome’s installation

Specifications

• Appearance: Hikvision White
• Material: Almuminum Alloy
• Dimesion: 355.5 x 255.3 x 170.7mm
• Weight: 2150g

Notes

• The bracket should be installed on the flat surface.
• Waterproof rubber is necessary for the outdoor application.
• The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
• The bracket’s maximum load capacity is 10 KG (22 lb.).
