WALLMOUNT SPEAKER WITHOUT LINE

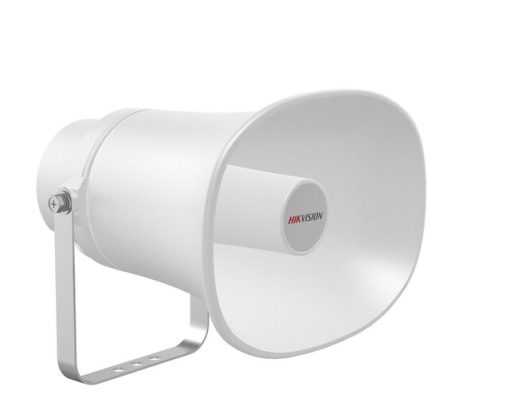

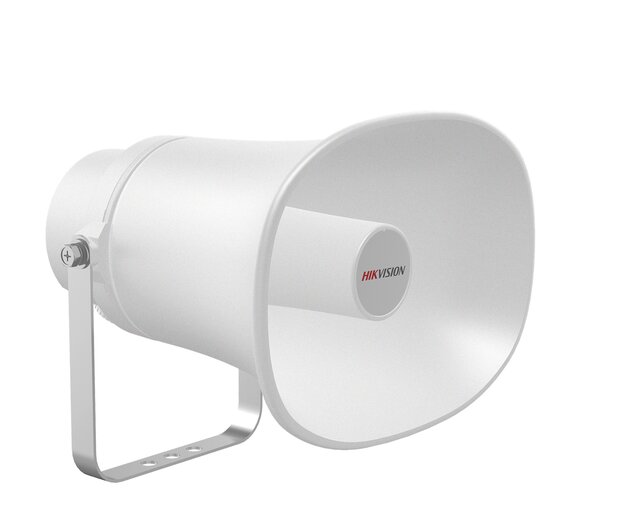

Model: Hikvision DS-PA0103-A

IP Horn Speaker

Features

• Network broadcast: playing audio file or real-time audio stream

Specifications

• Network Interface: 10/100Base-TX self-adaptive network, RJ45 interface
• Network Protocol: TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
• Audio Protocol: MP3, G.711a/u, G.722
• Speaker Output: 8 Vms
• Power Input: PoE (IEEE 802.3af), maximum 13W
• Power Output: 12 VDC, 1 A; 3.3 VDC, 1 A
• Power Consumption: < 1 W (without sound), maximum 13 W (producing sound)
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Protection Level: IP67

Approvals

• EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,
• EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,
• ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,
• KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,
• IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,
• IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,
• IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,
• NEMA 250 Type 4X, CNS 13438
• Dimension:
  • With bracket: 242 mm × 182 mm × 338.5 mm (9.53″ × 7.17″ × 13.33″)
  • Without bracket: 242 mm × 182 mm × 250 mm (9.53″ × 7.17″ × 9.84″)

Material

• Casing: aluminum alloy
• Rear cover: stainless steel
• Weight: Approx. 1.5 kg (3.31 lb.)
• Color: White
