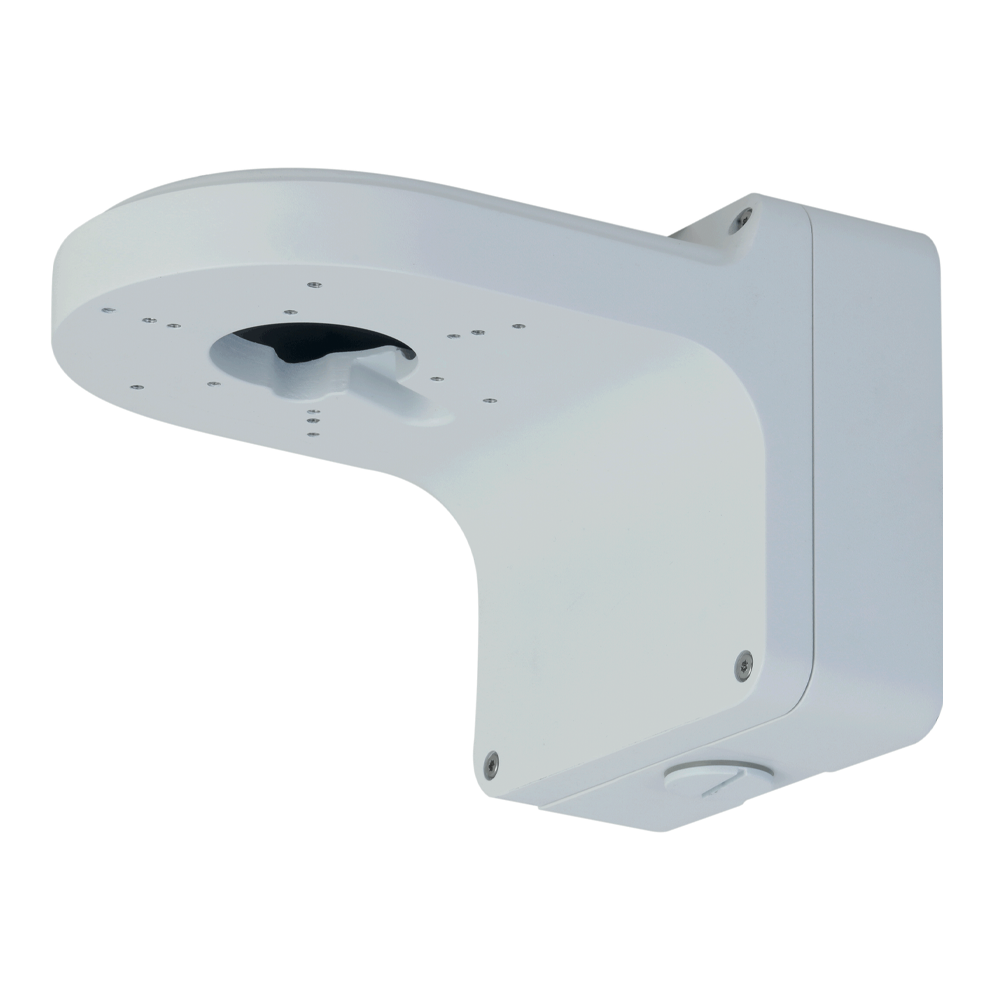

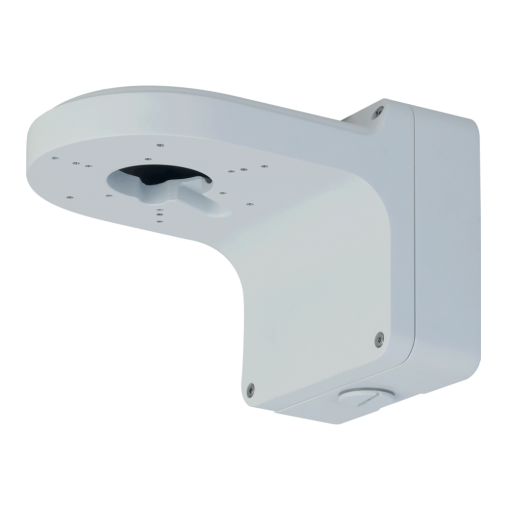

DAHUA WALL MOUNT BRACKET

Model: Dahua DH-PFB206W

Wall Mount Bracket

Features

• Aesthetic design
• Wall mount bracket
• Material: aluminum alloy

Specifications

Structure

• Material: Aluminum alloy
• Dimensions: 222.0 mm × 160.7 mm × 144.4 mm (8.66″ × 6.33″ × 5.68″) (L × W × H)
• Color: White
• Net Weight: 1.1 kg (2.42 lb)
• Gross Weight: 1.5 kg (3.31 lb)
• Load Bearing: 3.0 kg (6.61 lb)
• Installation: Wall mount
• Screw Thread Type: G 3/4
• Product Dimensions: 219.0 mm × 218.0 mm × 275.0 mm (8.62″ × 8.56″ × 10.83″) (L × W × H)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: <90% (RH)
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity: 10%–90% (RH)
