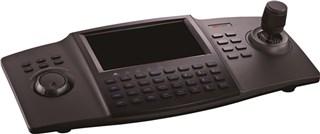

NETWORK KEYBOARD 7″TOUCHSCREEN DVR/CAMERA/DOME MANAGEMENT

Main Features:





• Ergonomic design with 800×480 LCD touch panel


• Live view and playback of video on screen at up to 1080p resolution


• 1-channel video decoding for local preview


• Video capture and recording to local U-flash disk


• Compatible with DVR/DVS, matrix, network camera/dome, PC-DVR, etc.


• Support 15 operators, and each user is allowed to operate 256 devices





Specifications:



Control mode

• Control mode:   IP-based


• Audio Input/Output


• Line In:   1-ch, 3.5mm connector (2.0Vp-p, 1kO)


• Audio Out:   1-ch, 3.5mm connector (Linear, 600O)




External interface

• Communication interface:   1 RJ45 10M/100M/1000M adaptive Ethernet interface;


• 1 RS-232 interface;


• 1 RS-485 interface;


• 1 USB2.0 interface (for data storage and device upgrade)


General



• LCD screen:   7 TFT LCD monitor with touch panel


• Joystick:   3-axis joystick


• Power supply:   12VDC


• Power consumption:   =15W


• Working temperature:   -10°C ~ +55°C


• Working humidity:   10%~90%


• Size:   110mm (H)×193mm (W) ×435mm (D)


• Weight:   2Kg
