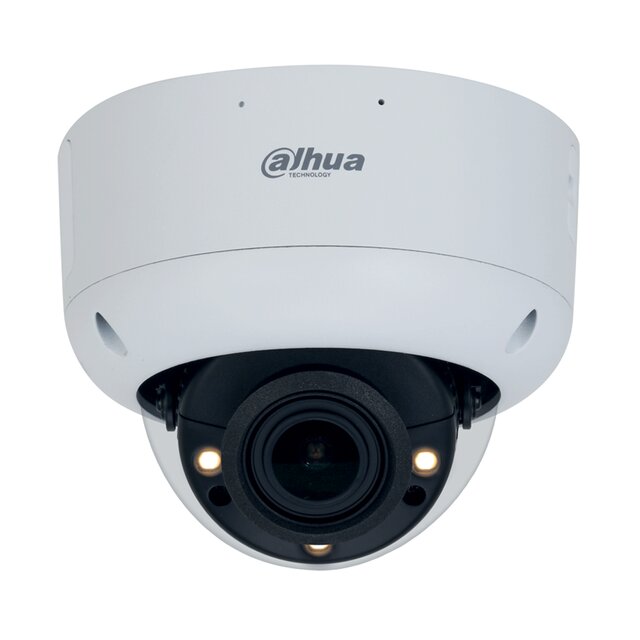

DAHUA 4MP WIZMIND DOME VARIFOCAL 2.7-12MM

Model: Dahua IPC-HDBW5449R1-ZE-LED

4MP Full-color Vari-focal Warm LED Dome WizMind Network Camera

Features

• 4MP 1/1.8″ CMOS image sensor, low illuminance, high image definition.
• Outputs max. 4MP (2688 × 1520) @30 fps.
• Built-in warm illuminator, and the max. illumination distance is 40 m.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker, support two-way talk.
• 12V DC/PoE power supply.
• ePoE, IP67, IK10 protection.
• SMD 3.0.

Specifications

Camera

• Image Sensor: 1/1.8” CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 M
• RAM: 512 M
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: [email protected]
• S/N Ratio: > 56 dB
• Illumination Distance: 40m(131.2 ft)
• Illuminator On/Off Control: Auto; Manual; Zoomprio
• Illuminator Number: 3 (Warm light)
• Pan/Tilt/Rotation Range
  • Pan: 0°–355°
  • Tilt: 0°–80°
  • Rotation: 0°–355°

Lens

• Lens Type: Motorized vari-focal
• Mount Type: φ16
• Focal Length: 2.7 mm–12 mm
• Max. Aperture: F1.0
• Field of View:
  • Horizontal: 115°–48°
  • Vertical: 59°–27°
  • Diagonal: 142°–55°
• Iris Type: Auto
• Close Focus Distance: 1.75 m (5.74 ft)
• DORI Distance:
  • Lens: W- T
  • Detect: W: 60.4 m – T: 128.6 m
  • Observe: W: 24.1m – T: 51.4m
  • Recognize: W: 12m – T: 25.7m
  • Identify: W: 6m – T: 12.8m

Smart event

• IVS: Abandoned object; missing object
• Heat Map: Yes

Professional, intelligent

• IVS (Perimeter Protection): Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
• Face Detection: Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
• People Counting: Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec: Smart H.265+/Smart H.264+
• Video Frame Rate:
  • Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
  • Sub stream: D1 (1 fps–25/30 fps)
  • Third stream: 1080p (1 fps–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 3 streams
• Resolution: 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–20480 kbps
  • H.265: 3 kbps–20480 kbps
• Day/Night: Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 140 dB
• Scene Self-adaptation: Yes
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Defog: Yes
• Image Rotation: 0°/90°/180°/270°
• Mirror: Yes
• Privacy Masking: 8 areas

Audio

• Built-in MIC: Yes
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management

Network

• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
• Network Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Interoperability:
  • ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
  • P2P
• User/Host: 20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser:
  • IE: IE8 and later
  • Chrome
  • Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Client= IOS; Android

Certification

• Certifications:
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B
  • UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: 5mA 3V–5V DC
• Alarm Output: 1 channel out: 300mA 12V DC

Power

• Power Supply: 12V DC (±30%)/PoE (802.3af)/ePoE
• Power Consumption:
  • Basic: 2.3 W (12 VDC); 3.3 W (PoE)
  • Max. (H.265 + 3 streams + intelligence + LED): 7.4 W (12 VDC); 9.0 W (PoE)

Environment

• Operating Conditions: –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
• Strorage Conditions: –40°C to +60°C (–40°F to +140°F)
• Protection Grade: IP67; IK10

Structure

• Casing: Metal
• Dimensions: 105 mm × Φ126 mm (4.1″ × Φ5.0″)
• Net Weight: 716.4 g (1.6 lb)
• Gross Weight: 929.7 g (2.0 lb)
