DAHUA 2MP WIZSENSE PTZ VARIFOCAL 4.8MM~120MM

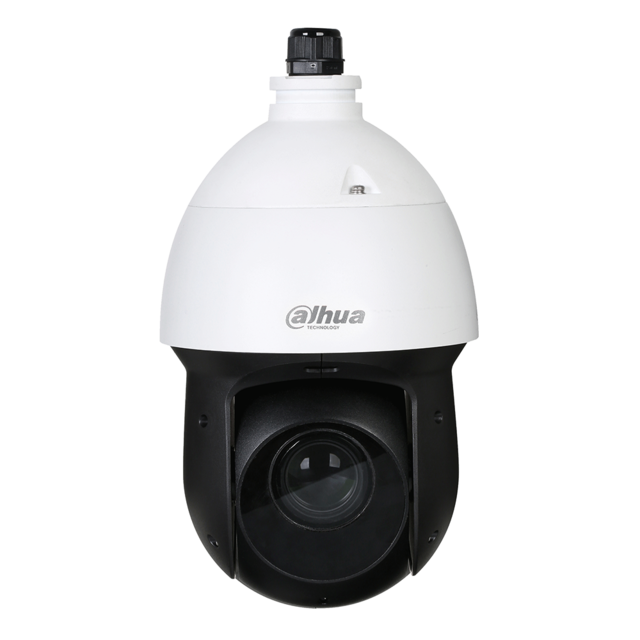

Model: Dahua DH-SD49425ZB-HNR

4MP 25x Starlight IR WizSense Network PTZ Camera

Features

• 1/2.8″ 4Megapixel CMOS
• Powerful 25x optical zoom
• Starlight technology
• Max.25/30fps@4M
• Perimeter protection
• Support PoE+
• IR distance up to 100m
• SMD PLUS
• IP66

Specifications

Camera

• Image Sensor: 1/2.8″ STARVIS™ CMOS
• Pixel: 4MP
• Max. Resolution: 2560 (H) × 1440 (V)
• ROM: 4GB
• RAM: 1GB
• Electronic Shutter Speed: 1/1 s–1/30,000 s
• Scanning System: Progressive
• Min. Illumination: Color: [email protected]
• B/W: [email protected]: [email protected] (IR light on)
• Illumination Distance: 100 m (328.08 ft)
• Illuminator On/Off Control: Zoom Prio/Manual/SmartIR
• Illuminator Number: 4

Lens

• Focal Length: 4.8 mm–120 mm
• Max. Aperture: F1.6–F4.0
• Field of View: H: 60.0°–2.5°; V: 30.8°–2.2°; D: 66.7°–2.9°
• Optical Zoom: 25x
• Focus Control: Auto/Semi-Auto/Manual
• Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
• Iris Control: Auto/Manual
• DORI Distance:
• Detect: 2540 m (8333.33 ft)
• Observe: 1016 m (3333.33 ft)
• Recognize: 508 m (1666.67 ft)
• Identify: 254 m (833.33 ft)

PTZ

• Pan/Tilt Range
  • Pan: 0°–360° (endless)
  • Tilt: -15°–90° (auto flip 180°)
• Manual Control Speed
  • Pan: 0.1°–200°/s
  • Tilt: 0.1°–120°/s
• Preset Speed
  • Pan: 240°/s
  • Tilt: 200°/s
• Presets: 300
• Tour: 8 (up to 32 presets per tour)
• Pattern: 5
• Scan: 5
• Speed Adjustment: Support
• Power-off Memory: Support
• Idle Motion: Preset/Tour/Pattern/Scanning
• Protocol:
  • DH-SD
  • Pelco-P/D (auto recognition)

General Intelligence

• Event Trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
• IVS: Object Abandoned/Missing

Artificial Intelligence

• Perimeter Protection: Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
• SMD PLUS: Support
• Face Detection: Support
• Smart Capture: Support human, motor vehicle and non-motor vehicle image capture.

Video

• Compression: H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
• Streaming Capability: 3 streams
• Resolution: 4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
• Frame Rate:
  • Main stream: 4MP/3MP/1080P/1.3MP/720P (1–25fps)
  • Sub stream 1: D1/CIF (1–25fps)
  • Sub stream 2: 1080P/1.3M/720P (1–25fps)
• Bit Rate Control: Variable/Constant
• Bit Rate: H.265/H.264: 3 kbps–20480 kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Support
• WDR: 120 dB
• HLC: Support
• White Balance: Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp
• Gain Control; Auto/Manual
• Noise Reduction: Ultra DNR (2D/3D)
• Motion Detection: Support
• Region of Interest: Support
• Electronic Image Stabilization: Support
• Electronic Defog: Support
• Digital Zoom: 16x
• Flip: 180°
• Privacy Masking: Up to 24 areas, and up to 8 areas in the same view

Audio

• Compression: G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729

Network

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
• Interoperability: ONVIF Profile S&G&T; CGI
• Streaming Method: Unicast/Multicast
• User/Host: 20
• Storage: NAS; Local PC; Micro SD card (256G)
• Browser:
  • IE7 and newer versions
  • Chrome 45 and earlier versions
  • Firefox 52 and earlier versions
  • Safari (no version restrictions)
• Management Software: Smart PSS; DSS; DMSS
• Mobile Phone: IOS/Android

Certification

• Certifications:
  • CE: EN55032/EN55024/EN50130-4
  • FCC: Part15 subpartB, ANSI C63.4-2014
  • UL: UL62368-1+CAN/CSA C22.2,No. 62368-1

Port

• Audio Input: 1
• Audio Output: 1
• Alarm I/O: 2/1

Power

• Power Supply:
  • DC 12V/3A
  • PoE+ (802.3at)
• Power Consumption:
  • 13W
  • 21W (IR on)

Environment

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Operating Humidity: ≤95%
• Protection: IP66; TVS 6000V lightning proof; Surge protection

Structure

• Dimensions: Φ160 mm × 295 mm (6.30″ × 11.61″)
• Net Weight: 3 kg (6.61 lb)
• Gross Weight: 4.8kg (10.58lb)
