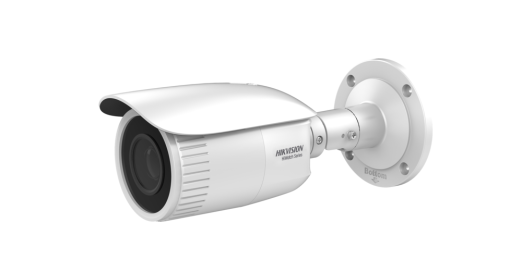

HIKVISION HIWATCH 4MP BULLET OUTDOOR VARI-FOCAL

Model: HikVision HiWatch HWI-B640H-Z (2.8-12mm)

4 MP IR VF Network Bullet Camera

Features

• 1/3″ progressive scan CMOS
• 2560 × 1440@20fps
• 2.8 mm to 12 mm motorized varifocal lens
• H.265+, H.265, H.264+, H.264
• Dual stream
• 120 dB WDR (Wide Dynamic Range)
• 3D DNR (Digital Noise Reduction)
• Up to 30 m IR range
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
• PoE (Power over Ethernet)
• IP67

Specifications

Camera

• Image Sensor: 1/3″ progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
• Slow Shutter: Yes
• Auto-Iris: No
• Day &Night: IR cut filter
• Digital Noise Reduction: 3D DNR
• WDR: 120 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal Length: 2.8 mm to 12 mm
• Aperture: F1.6
• Focus: Auto
• FOV: Horizontal FOV 98° to 28°, vertical FOV 51° to 16°, diagonal FOV 115° to 32°
• Lens Mount: Ø 14

IR

• IR Range: Up to 30 m
• Wavelength: 850 nm

Compression Standard

• Video Compression
  • Main stream: H.265/H.264
  • Sub stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.264+: Main stream supports
• H.265 Type: Main Profile
• H.265+: Main stream supports
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-set

• Region of Interest: 1 fixed region for main stream and sub-stream


• Max. Resolution: 2560 × 1440
• Main Stream Max. Frame Rate:
  • 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
  • 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
• Sub-stream Max. Frame Rate:
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement: BLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled

Network

• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login
• Network Storage: Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users; 3 levels: Administrator, Operator, and User
• Client: iVMS-4200, iVMS-5200, iVMS-4500
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
• Reset Button: Yes

General

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 25%, 5.5 mm coaxial power plug
  • PoE (802.3af, class 3)
• Power Consumption and Current:
  • 12 VDC, 0.9 A, Max: 11 W
  • PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12.9 W
• Ingress Protection: IP67
• Material: metal
• Dimensions: Camera: Ø 105 mm × 244.4 mm
• Weight:
  • Camera: 1035 g
  • With package: 1550g
