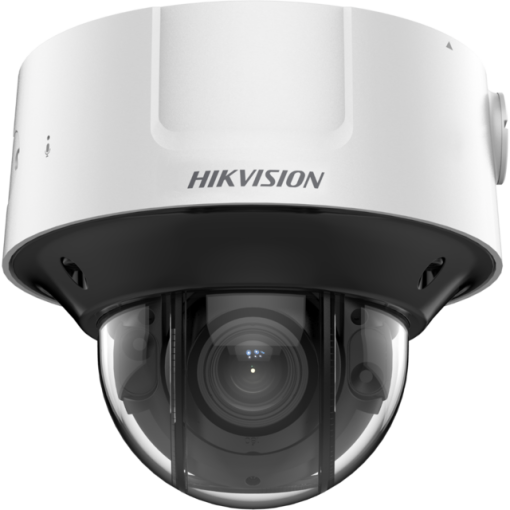

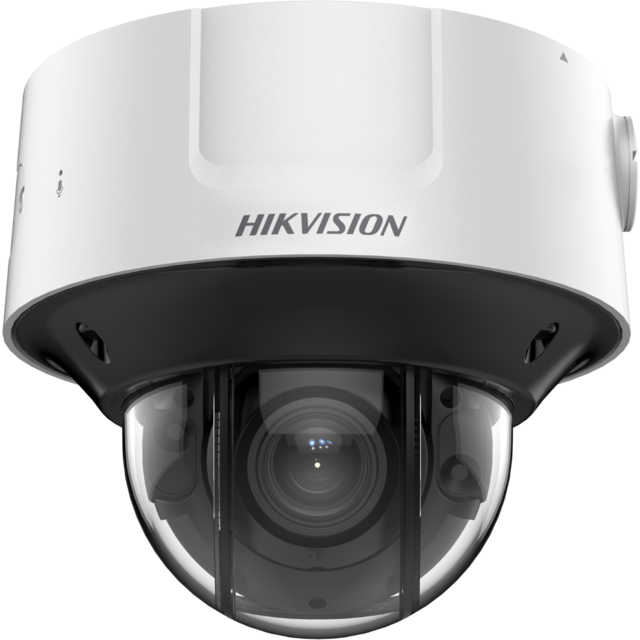

HIKVISION 4MP DOME VARIFOCAL 2.8-12MM WITH MICRO/ALARM

Model: Hikvision DS-2CD3D46G2T-IZMSU

4 MP HDMI Varifocal Dome Network Camera

Features

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 140 dB WDR technology
• Support HD HDMI video output
• Excellent low-light performance with DarkFighter technology
• False alarm reduction through human and vehicle target classification based on deep learning
• Anti-IR Reflection
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Specifications

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0014 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 115° to 12°, vertical FOV 59° to 24°, diagonal FOV 141° to 48°
• Lens Mount: Integrated
• Iris Type: P-iris
• Aperture: F1.2
• Depth of Field: 2.8 to 12 mm: 1.5 m to ∞

DORI

• DORI 2.8 to 12 mm: D: 60 m to 149 m, O: 23 m to 59 m, R: 12 m to 29 m, I: 6 m to 14 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
    *Third stream is supported under certain settings.
• Fourth Stream
  • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360),
    ​​​​​​​*Fourth stream is supported under certain settings.
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+,
  • Sub-stream: H.265/H.264/MJPEG,
  • Third stream: H.265/H.264,
  • Fourth stream: H.265/H.264/MJPEG,
    *Third stream and fourth stream are supported under certain settings.
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Target Cropping: Yes

Audio

• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security:
  • Password protection, complicated password, HTTPS encryption, IP address filter,
  • Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption,
  • SFTP encryption, SRTP encryption
• Network Storage:
  • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11,
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 140 dB
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Video Output: HDMI (HDMI 1.4, no adapter included): 1080p@25 fps/30 fps
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Built-in Microphone: Yes
• Audio:
  • 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7
  • KΩ, interface type: non-equilibrium,
  • 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output
  • impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A; 24 VAC, 1 A)
• Reset: Key Yes
• Power Output: 12 VDC, max. 100 mA

Event

• Basic Event: Motion detection,video tampering alarm,exception
• Smart Event:
  • Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),
  • Unattended baggage detection, object removal detection, scene change detection, audio exception detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function

• Face Capture Yes

General

• Power:
  • 12 VDC ± 25%, 0.9 A, max. 10.8 W, two-core terminal block, reverse polarity protection,
  • 24 VAC ± 20%, 0.75 A, max. 10.8 W,
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
• Material: Metal
• Dimension: Ø 162 mm × 141.8 mm (Ø 6.4″ × 5.6″)
• Package Dimension: 251 mm × 215 mm × 189 mm (9.9″ × 8.5″ × 7.4″)
• Weight: Approx. 1420 g (3.1 lb.)
• With Package Weight: Approx. 2058 g (4.5 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter
• Language:
  • 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC
  • FCC: 47 CFR Part 15, Subpart B,
  • CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
  • 50130-4: 2011 +A1: 2014,
  • RCM: AS/NZS CISPR 32: 2015,
  • IC: ICES-003: Issue 7,
  • KC: KN32: 2015, KN35: 2015
• Safety
  • UL: UL 62368-1,
  • CB: IEC 62368-1: 2014+A11,
  • CE-LVD: EN 62368-1: 2014/A11: 2017,
  • BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment
  • CE-RoHS: 2011/65/EU,
  • WEEE: 2012/19/EU,
  • Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002
