HIKVISION SOLUTION PANOVU DOME 8MP

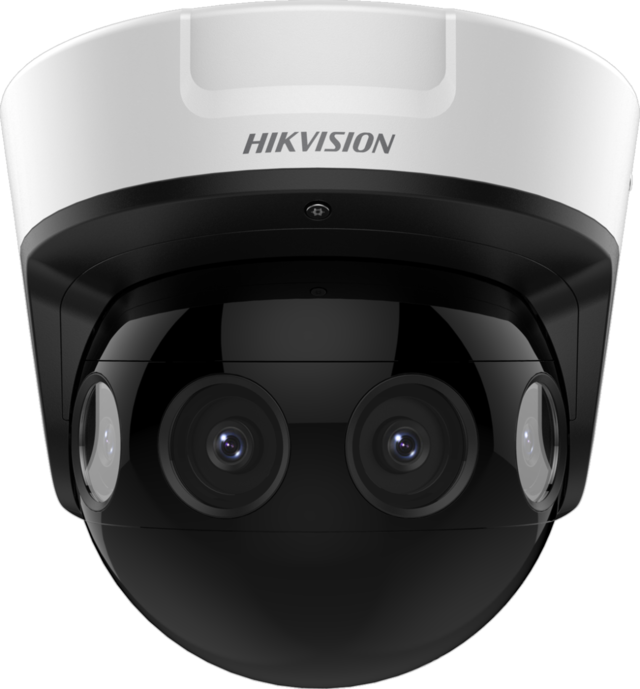

Model: Hikvision DS-2CD6924G0-IHS(2.8mm)

8 MP 180° PanoVu Network Camera

Features

• 180° splicing image to present all scenes that covered by the camera
• Built-in heater, ultra-low temperature start up to -40℃
• Water and dust resistant (IP67) and vandal proof(IK10)
• Smart human density counting and public behaviors analysis to increase public area safety

Specifications

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
• Shutter Speed: 1/25 s to 1/100,000 s
• Day &Night: IR cut filter. Blue glass module to reduce ghost phenomenon.
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°
• WDR: Digital WDR

Lens

• Aperture: F1.4
• Focus: Manual, semi-auto
• FOV: 2.8 mm: horizontal FOV 180°, vertical FOV 90°
• Lens Mount: M16
• Lens Type: Fixed lens, 2.8 mm, four lenses

Illuminator

• IR Range: Four IR LEDs, up to 20 m
• Wavelength: 850 nm

Video

• Max. Resolution:
  • Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080
  • Panorama mode: 3840 × 2160
  • Original mode: 1920 × 1080
• Main Stream:
  • Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Panorama mode: 50Hz: 25fps (3840 × 2160 , 2560 × 1440 , 1920× 1080), 60Hz: 30fps (3840 × 2160 , 2560 × 1440 , 1920× 1080)
  • Original mode: 50Hz: 25fps (1920× 1080), 60Hz: 30fps (1920× 1080)
• Sub Stream: Panorama mode: 50Hz: 25fps (1280 × 720, 640 × 360), 60Hz: 30fps (1280 × 720, 640 × 360)
• Video Compression:
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/ Main Profile/ High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 65 Mbps
• SVC: H.264 and H.265 encoding
• H.264+: Main stream support
• H.265+: Main stream support

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz

Smart Feature-Set

• Basic Event: Motion detection (only panorama and original modes support), exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• People Density: Yes (only panorama mode supports)
• Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture


• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
• Image Setting: Rotate mode (only the original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Target Cropping: Yes (only panorama mode supports)
• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Network

• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
• Security:
  • Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),
    watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Client: iVMS-4200
• Web Browser: IE8+

Interface

• Communication Interface:
  • 1 RJ45 10M/100M/1000M Ethernet port;
  • 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Audio:
  • 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
  • 1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1A)
• On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 256GB

Approval

• EMC:
  • FCC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4);
  • RCM (AS/NZS CISPR 32:2015);
  • IC (ICES-003: Issue 6, 2016);
  • KC (KN 32: 2015, KN 35: 2015);
• Safety:
  • UL (UL 60950-1);
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
  • BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015);
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
• Chemistry:
  • CE-ROHS (2011/65/EU);
  • REACH (Regulation (EC) No 1907/2006);
  • WEEE (2012/19/EU);
• Protection: Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

General

• Firmware Version: V5.5.84
• Web Client Language: English
• General Function: Anti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only original mode supports), password protection, watermark, IP address filter, pixel counter
• Reset: Reset via reset button on camera body, web browser and client software
• Startup And Operating Conditions: -40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
• Storage Conditions : -40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC, three-core terminal block, PoE (802.3at)
• Power Consumption And Current: 12 VDC, 1.6 A, max. 24 W, PoE (802.3at, 42.5 V to 57 V), 0.5 to 0.4 A
• Material: Aluminum alloy
• Dimensions:
  • Camera: 189.5 × 207.63 × 206.62 mm (7.46″ × 8.17″ × 8.13″)
  • With Package: 340 × 261 × 293 mm (13.4 × 10.3″ × 11.5″)”
  • Camera: approx. 3 kg (6.6 lb.)
  • With package: approx. 5 kg (11 lb.)
• Heater: Yes
