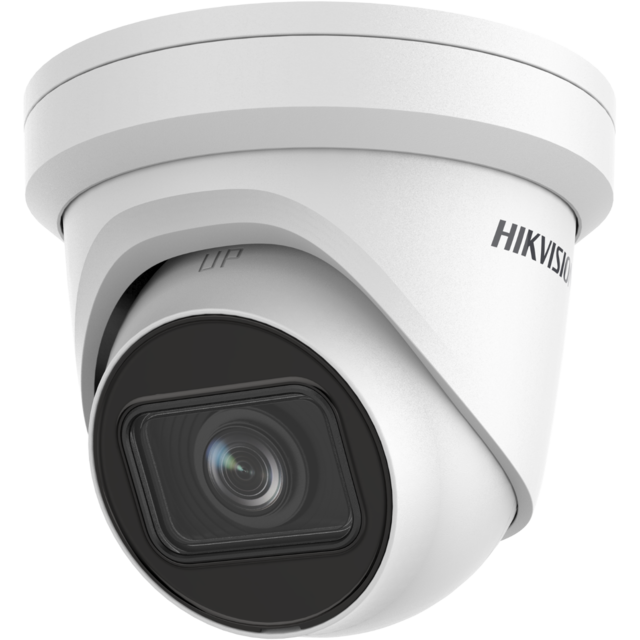

HIKVISION 4MP 2.8-12MM VARIFOCAL TURRET CAMERA

Model: Hikvision DS-2CD1H43G0-IZ(2.8-12mm)

4 MP Motorized Varifocal Turret Network Camera

Features

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Up to 128 GB SD card slot for storage
• 2.8 to 12 mm motorized vari-focal lens for easy installation and monitoring
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range

Specifications

Camera

• Image Sensor: 1/3″ progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s
• Slow Shutter: Yes
• Day &Night: IR cut filter
• Wide Dynamic Range: 120 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• DNR: 3D DNR

Lens

• Lens: 2.8 mm to 12 mm
• Auto-Iris: No
• Aperture: F1.6
• Focus: Auto
• FOV: Horizontal FOV 92.8° to 29°, vertical FOV 50.2° to 16.4°, diagonal FOV 109° to 32.3°
• Lens Mount: Ø14

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2560 × 1440
• Video Compression: Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-Set

• Region Of Interest: 1 fixed region for main stream and sub-stream


• Image Enhancement: BLC, 3D DNR
• Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled, day, night
• Main Stream Max. Frame Rate: 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
• Sub-Stream Max. Frame Rate: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network

• Network Storage: Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users,3 levels: Administrator, Operator, and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB

Compression Standard

• H.264+: Main stream supports
• H.265+: Main stream supports

General

• Firmware Version: 5.5.52
• General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Reset: Yes
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Material: Camera body: metal, bottom base: plastic
• Dimensions:
  • Camera: Ø 129.4 mm × 116.4 mm (5.1″ × 4.6″),With package: Ø 170 mm × 150 mm (6.7″ × 5.9″)
  • Camera: 560 g (1.2 lb.),With package: 850g (1.9 lb.)
• Power Consumption And Current: 12 VDC, 1 A, Max: 11 W,PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12.5 W
• Interface Protection: IP67
