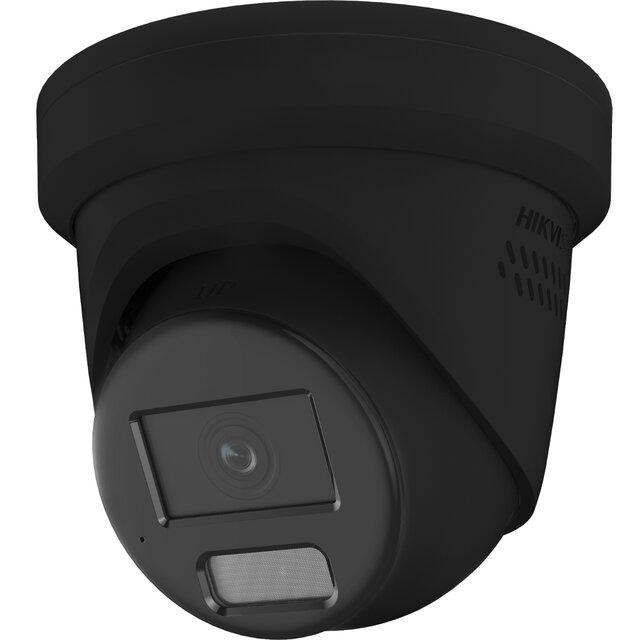

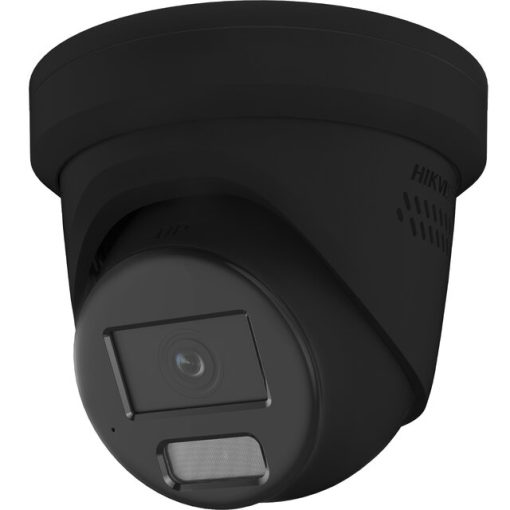

HIKVISION 4MP COLORVU TURRET 2.8MM +2WAY AUD/STR LIGHT BLACK

Model: Hikvision DS-2CD2347G2-LSU/SL/2.8mm/C/BLACK

4 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

Features

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Focal Length & FOV: 2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 3.1 m to ∞

DORI

• DORI: 2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m

Illuminator

• Supplement Light Type: White light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream:
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *Third stream is supported under certain settings.
• Video Compression:
  • Main stream: H.265/H.264/H.265+/H.264+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
    *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC): H.265 and H.264 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
  and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card (256 GB) local storage
  Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB
• Built-in Microphone: Yes
• Built-in Speaker: 1.2 W, 10 cm: 95 dB
• Audio:
  • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
  • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm:
  • Visual alarm
  • 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes

Event

• Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle) Scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output

Deep Learning Function

• Face Capture Yes

General

• Power:
  • 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
• Dimension: Ø 138.3 mm × 115.4 mm (Ø 5.4″ × 4.5″)
• Package Dimension: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
• Weight Approx.: 760 g (1.7 lb.)
• With Package Weight Approx.: 1040 g (2.3 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

• EMC:
  • FCC SDoC: 47 CFR Part 15, Subpart B;
  • CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
  • +A1: 2014;
  • RCM: AS/NZS CISPR 32: 2015;
  • IC VoC: ICES-003: Issue 6, 2016;
  • KC: KN 32: 2015, KN 35: 2015
• Safety:
  • UL: UL 60950-1;
  • CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
  • CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
  • LOA: IEC/EN 60950-1
• Environment
  • CE-RoHS: 2011/65/EU;
  • WEEE: 2012/19/EU;
  • Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
