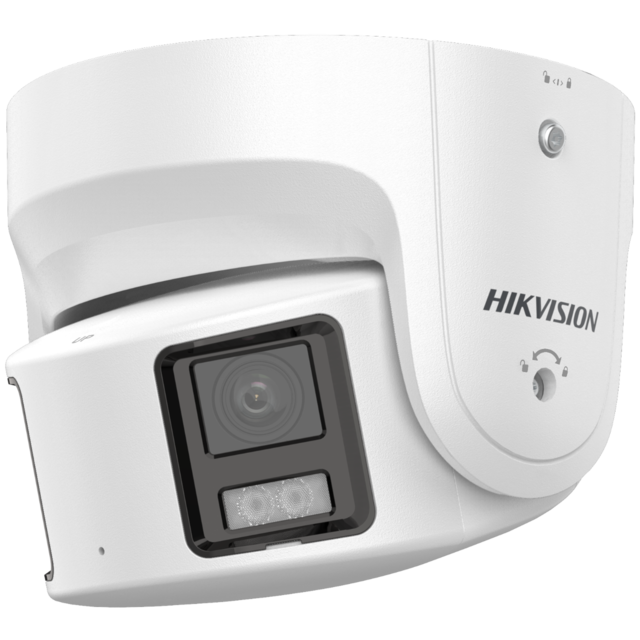

HIKVISION 8MP COLORVU PANORAMIC TURRET 4.0MM

Model: Hikvision DS-2CD2387G2P-LSU/SL

8 MP Panoramic Fixed Turret Network Camera

Features

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

• High quality imaging with 8 MP resolution
• One image that presents all the scenes covered by the camera
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 2 × 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 5120 × 1440
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: -30° to 30°,tilt: -75° to 75°

Lens

• Lens Type: Fixed focal lens, Dual lens: 4 mm
• Focal Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 44°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth Of Field: 3.6 m to ∞

DORI

• DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream:
  • When WDR is On:
    • 50 Hz: 12.5 fps (5120 × 1440)
    • 60 Hz: 15 fps (5120 × 1440)
  • When WDR is Off:
    • 50 Hz: 20 fps (5120 × 1440)
    • 60 Hz: 20 fps (5120 × 1440)
• Sub-Stream:
  • When WDR is On:
    • 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
    • 60 Hz: 15 fps (1920 × 536, 960 × 272)
  • When WDR is Off:
    • 50 Hz: 20 fps (1920 × 536, 960 × 272)
    • 60 Hz: 20 fps (1920 × 536, 960 × 272)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 1 fixed region(s) for main stream

Audio

• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host:
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Clienti: VMS-4200,Hik-Connect,Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11 ,
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Image Settings: saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch: Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
• Built-In Microphone: Yes
• Built-In Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
• Audio:
  • 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
  • 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

General

• Power:
  • 12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
• Material: Base: metal, cover: metal
• Dimension: Ø155 mm × 155.3 mm (Ø6.1 × 6.1″)”
• Package Dimension: 230 mm × 230 mm × 230 mm (9″ × 9″ × 9″)
• Approx. 1110 g (2.4 lb.)
• With Package Weight: Approx. 1900 g (4.2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
• Flashing Light: Yes

Approval

• EMC:
  • FCC: 47 CFR Part 15, Subpart B,
  • CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
  • RCM: AS/NZS CISPR 32: 2015,
  • IC: ICES-003: Issue 7
• Safety:
  • UL: UL 62368-1,
  • CB: IEC 62368-1: 2014+A11,
  • CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment:
  • CE-RoHS: 2011/65/EU,
  • WEEE: 2012/19/EU,
  • Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
