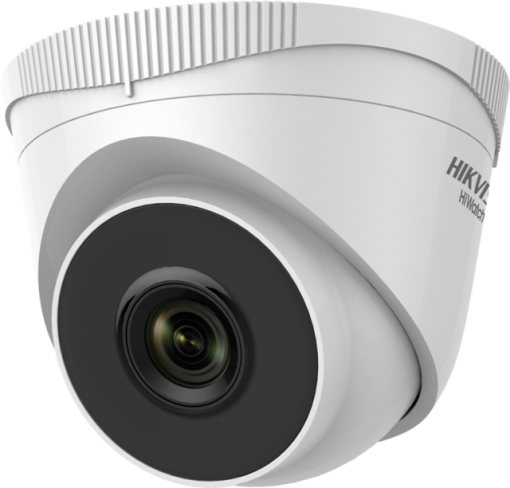

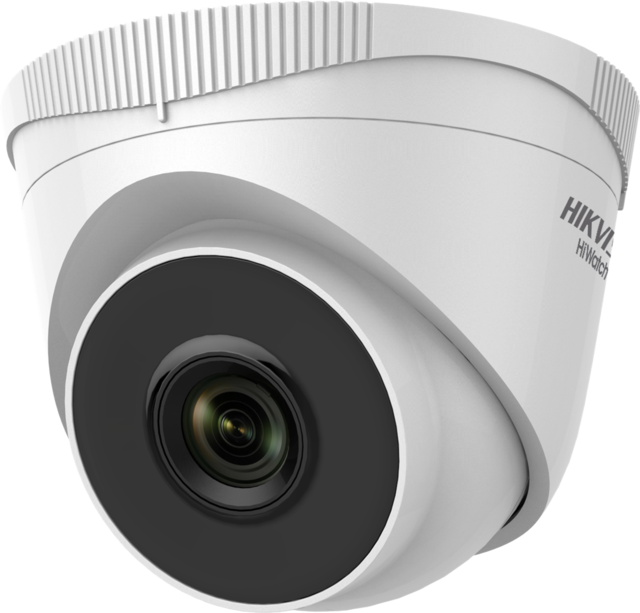

HIKVISION HIWATCH 4MP TURRET OUTDOOR 2.8MM

Model: Hikvision HWI-T240H(2.8mm)

4.0 MP CMOS Network Turret Camera

Features

• 1/3″ progressive scan CMOS
• 3D DNR (Digital Noise Reduction)
• 2560 × 1440@20fps
• Up to 30 m IR range
• 2.8 mm Lens
• PoE (Power over Ethernet)
• H.265+, H.265, H.264+, H.264
• IP 67
• Dual stream
• 120 dB WDR (Wide Dynamic Range)

Specifications

Camera

• Image Sensor: 1/3″ progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
• Slow Shutter: Yes
• Auto-Iris: No
• Day &Night: IR cut filter
• Digital Noise Reduction: 3D DNR
• WDR: 120 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens

• Focal Length: 2.8 mm
• Aperture: F2.0
• Focus: No
• FOV: 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
• Lens Mount: M12

IR

• IR Range: Up to 30 m
• Wavelength: 850 nm

Compression Standard

• Video Compression:
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.264+: Main stream supports
• H.265 Type: Main Profile
• H.265+: Main stream supports
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-set

• Region of Interest: 1 fixed region for main stream and sub-stream


• Max. Resolution: 2560 × 1440
• Main Stream Max. Frame Rate:
  • 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-stream Max. Frame Rate:
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement: BLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled

Network

• Network Storage: NAS (NFS, SMB/CIFS)
• Alarm Trigger: Motion detection, video tampering alarm, illegal login
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users , 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug , PoE (802.3af, class 3)
• Power Consumption and Current: 12 VDC, 0.5 A, max: 5 W , PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 6.5 W
• Ingress Protection: IP67
• Material: Metal & Plastic
• Dimensions:
  • Camera: Ø 110 mm × 93.2 mm (Ø 4.3″ × 3.7″)
  • With package: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight:
  • Camera: approx. 350 g (0.77 lb.)
  • With package: approx. 610 g (1.3 lb.)
