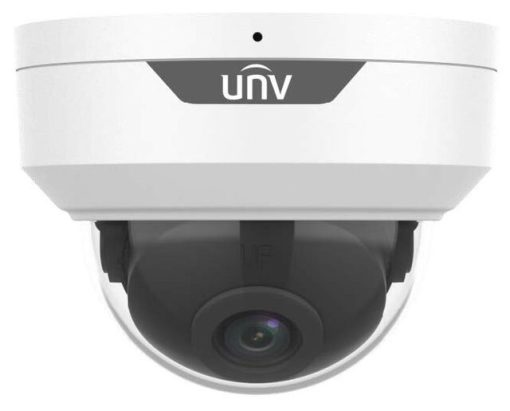

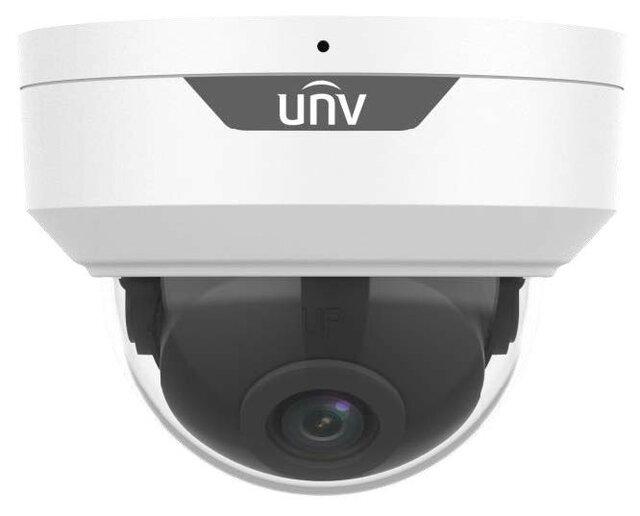

UNIVIEW EASY 8MP DOME 2.8MM

Model: Uniview IPC328LE-ADF28(40)K-G

4K HD Vandal-resistant IR Fixed Dome Network Camera

Features

• High quality image with 8MP, 1/2.7″CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis

Specifications

Camera

• Sensor: 1/2.7″, 8.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
• Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON)
• 0Lux with: IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle:
  • Pan: 8° to 360°
  • Tilt: 0° to 68°
  • Rotate: 10° to 360°
• S/N: >56dB
• WDR: 120dB

Lens

• Lens Type: 2.8mm @1.6, Fixed-focal
• Lens Mount: M12
• Angle of view (H): 112.9°
• Angle of View (V): 59.1°
• Angle of View (O) 121.2°

Dori

• DORI Distance:
  • Lens: 2.8mm
  • Detect(m): 84
  • Observe(m): 33.6
  • Recognize(m): 16.8
  • Identify(m): 8.4

Illuminator

• IR Range: Up to 30m (98ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
  • Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps U-code Supported 9:16 Corridor Mode Supported OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Supported
• 9:16 Corridor Mode: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas

Images

• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital noise reduction: 2D/3D DNR
• Smart IR: Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Events

• Basic Detection:
  • Cross line, intrusion(based on human body detection)
  • Motion detection, tampering alarm, audio detection
  • General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR,NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation EZView EZLive
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Built-in Mic: Supported

Certification

• EMC: FCC: FCC Part 15
• Safety:
  • CE: EN 60950-1
  • UL: UL60950-1
  • IEC 60950-1

General

• Power
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 4.5W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ109 x 83mm (Ø4.3” x 3.3”)
• Weight: 0.37kg (0.82lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Supported
• Ingress Protection: Ingression protection: IP67
• Vandal resistant: IK10
