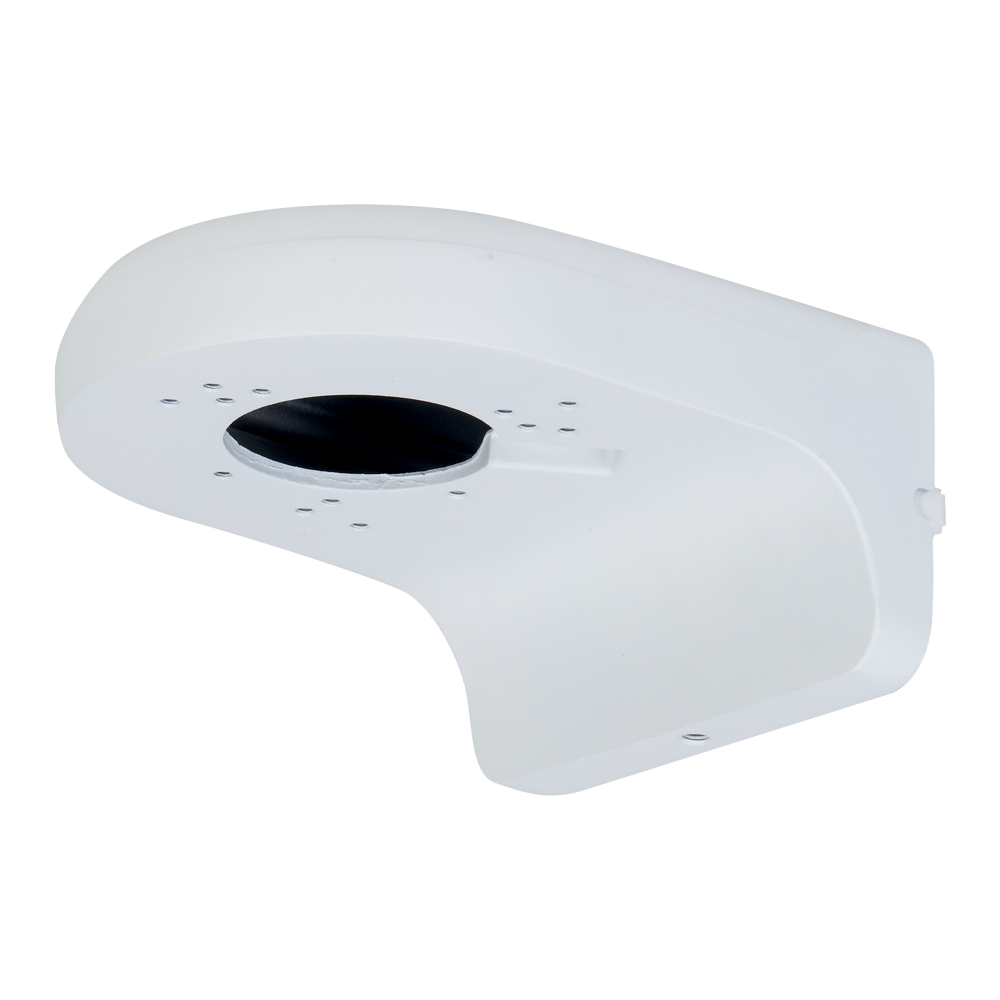

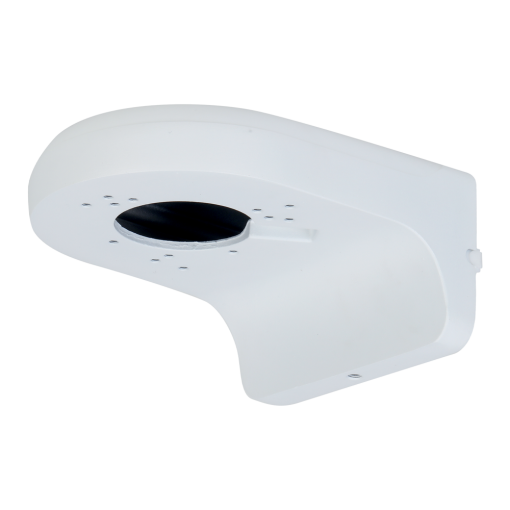

DAHUA WALL MOUNT BRACKET

Model: Dahua PFB205W-E

Wall Mount Bracket

Features

• Aesthetic design
• Wall mount bracket
• Material: aluminum & SECC

Specifications

Structure

• Material: Aluminum alloy
• Dimensions: 161.6 mm × 125.6 mm × 76.0 mm (6.36″ × 4.94″ × 2.99″) (L × W × H)
• Color: White
• Net Weight: 0.49 kg (1.08 lb)
• Gross Weight: 0.56 kg (1.23 lb)
• Load Bearing: 2.0 kg (4.41 lb)
• Installation: Wall mount
• Product Dimensions: 128.0 mm × 81.0 mm × 170.0 mm (5.04″ × 3.19″ × 6.69″) (L×W×H)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: < 90% (RH)
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity: 10%–90% (RH)
