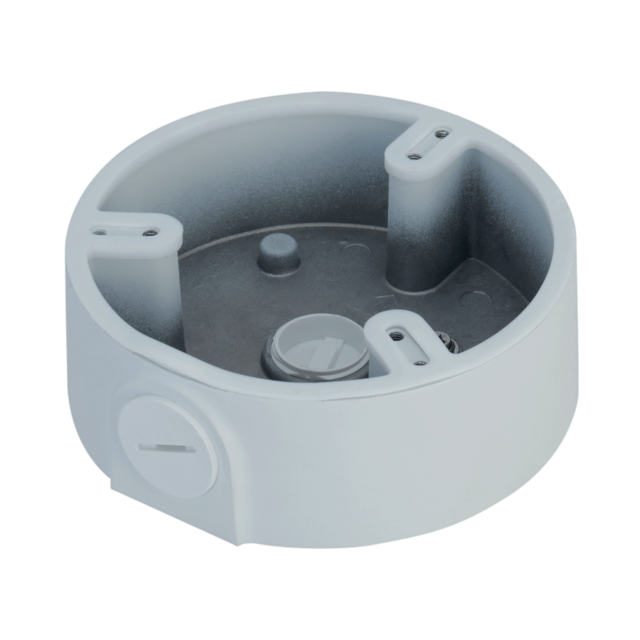

DAHUA JUNCTION BOX

Model: Dahua PFA197R

Junction Box

Features

• Built of aluminum alloy and is cost-effective.
• Suitable for a variety of cameras and is elegant.

Specifications



Structure

• Material: Aluminum alloy
• Dimensions: Φ129.1 mm × 45.0 mm (Φ5.08″ × 1.77″)
• Color: White
• Net Weight: 0.4 kg (0.88 lb)
• Gross Weight: 0.58 kg (1.27 lb)
• Load Bearing: 3.0 kg (6.61 lb)
• Installation: Junction box mount
• Screw Thread Type: G 3/4
• Product Dimensions: 185.0 mm × 163.0 mm × 71.0 mm (7.28″ × 6.42″ × 2.8″) (L × W × H)
• Packaging Dimensions:  578.0 mm × 383.0 mm × 349.0 mm (22.76″ × 15.08″ × 13.74″) (L × W × H)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: <90% (RH)
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity: 10%–90% (RH)
