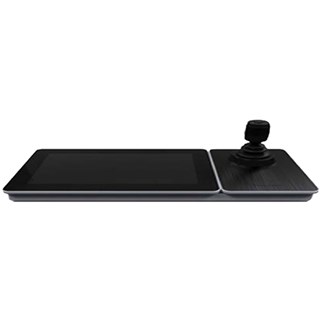

TOUCHABLE & DETACHABLE 10.1″ CAPTIVE TOUCHSCREEN

Main Features

• 10.1″ capacitive touchscreen;


• Detachable design of the touchscreen and joystick


• Wired and WiFi network connection;


• POE power supply;


• Capable of decoding 2-ch at 1080P decoding; up to 16-division
  window display;


• Live view on touch panel;


• DVI and HDMI output to monitor;


• Controllable of 2000 devices;


• Access to Hikvision products including DVR, DVS, NVR,
  network camera, speed dome, etc.;


• Control of MVC and decoders for video decoding and output
  on video wall;


• PTZ control, setting and calling preset, patrol and pattern;


• Support upgrade and configuration files import/export by USB
  flash disk


• Support recording and picture capturing; saving files in USB
  flash disk or uploading to FTP server;


• Two-level user authority and up to 16 user accounts are
  configurable: one admin and 15 operators

Specification

• Model DS-1600KI


• Operating System Android 4.4


• TFT LCD Screen 10.1″ TFT LCD touchscreen Resolution: 1024 × 600


• Joystick 4-axis joystick


• Local Decoding Local live view at
  1080P/720P/HD1/BCIF/CIF/QCIF resolution, and up to 16-division window display


• Two-way Audio Input: 1-ch, 3.5mm connector (2.0Vp-p, >1kO)


• Audio Output 1-ch, 3.5mm connector (2.0 Vp-p, 600 O)


• Network Interface 10M/100M/1000M Adaptive Ethernet port


• WiFi Supported


• USB Interface USB 2.0 × 2


• Video Interface HDMI, DVI


• Power Supply 12V DC /POE


• Consumption =15W


• Working Temperature: -10°C –+55°C


• Working Humidity 10%–90%


• Dimensions (W × D × H) 404 × 180 × 163 mm


• Weight 1.7 Kg
