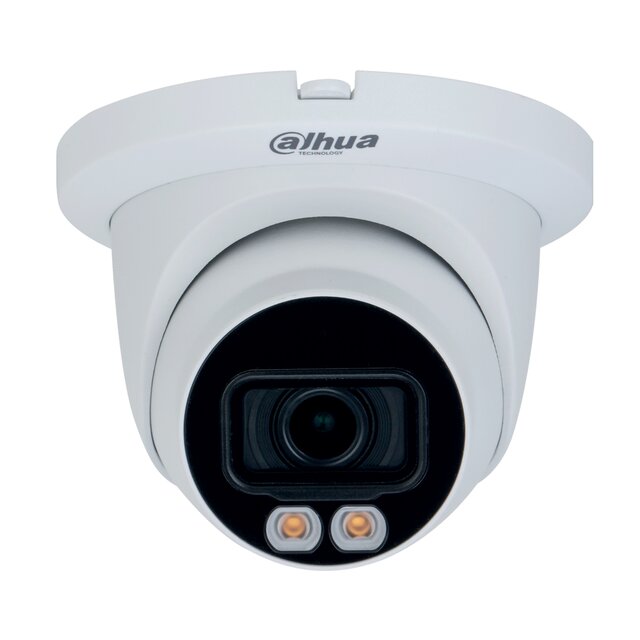

DAHUA 4MP WIZMIND TURRET 2.8MM

Model: Dahua DH-IPC-HDW5449TMP-SE-LED-0280B

4MP Full-color Fixed-focal Warm LED Eyeball WizMind Network Camera

Features

• 4MP 1/1.8″ CMOS image sensor, low illuminance, high image definition.
• Outputs max. 4MP (2688 × 1520) @30 fps.
• Built-in warm illuminator, and the max. illumination distance is 30 m.
• ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various. bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Supports max. 256 G Micro SD card, Built-in Mic.
• 12V DC/PoE power supply.
• ePoE,IP67 protection.
• SMD 3.0.

Specifications

Camera

• Image Sensor: 1/1.8” CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: 0.0005 [email protected] (Color, 30IRE)
• S/N Ratio: > 56 dB
• Illumination Distance: 30 m (98.4 ft)
• Illuminator On/Off Control: Auto; manual
• Illuminator Number: 2 (Warm light)
• Pan/Tilt/Rotation Range:
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Lens Mount: M16
• Focal Length: 2.8 mm
• Max. Aperture: F1.0
• Field of View: 2.8 mm: Horizontal 107°;Vertical 60°;Diagonal 135°
• Iris Control: Fixed
• Close Focus Distance: 2.8 mm: 1.6 m (5.2 ft)
• DORI Distance:
  • Detect: 58.2 m
  • Observe: 23.3 m
  • Recognize: 11.6 m
  • Identify: 5.8 m

Smart Event

• IVS: Abandoned object; missing object
• Heat Map: Yes

Professional, intelligent

• IVS (Perimeter Protection): Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
• Face Detection: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
• People Counting:
  • Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.
  • Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
  • Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Audio

• Built-in MIC: Yes
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec: Smart H.265+/H.264+
• Video Frame Rate
  • Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
  • Sub stream: D1 (1 fps–25/30 fps)
  • Third stream: 1080p (1 fps–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 3 streams
• Resolution: 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–20480 kbps
  • H.265: 3 kbps–20480 kbps
• Day/Night: Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 140 dB
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto; manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Defog: Yes
• Image Rotation: 0°/90°/180°/270°
• Mirror: Yes
• Privacy Masking: 8 areas

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management

Network

• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
• Network Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
• User/Host: 20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD card (Support max. 256 G); NAS
• Browser:
  • IE: IE8 and later
  • Chrome
  • Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Client: iOS; Android

Certification

• Certifications:
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B
  • UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

• Power Supply: 12V DC (±30%)/PoE (802.3af)/ePoE
• Power Consumption
  • Basic: 2.4 W (12 VDC); 3 W (PoE)
  • Max. (H.265 + 3 streams + intelligence + LED): 6.5 W (12 VDC); 7.2 W (PoE)

Environment

• Operating Temperature: –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
• Storage Temperature: –40°C to +60°C (–40°F to +140°F)
• Protection: IP67

Structure

• Casing: Metal
• Product Dimensions: 104.4 mm × Φ121.9 mm (4.11″ × Φ4.80″)
• Net Weight: 500 g (1.1 lb)
• Gross Weight: 680 g (1.5 lb)
