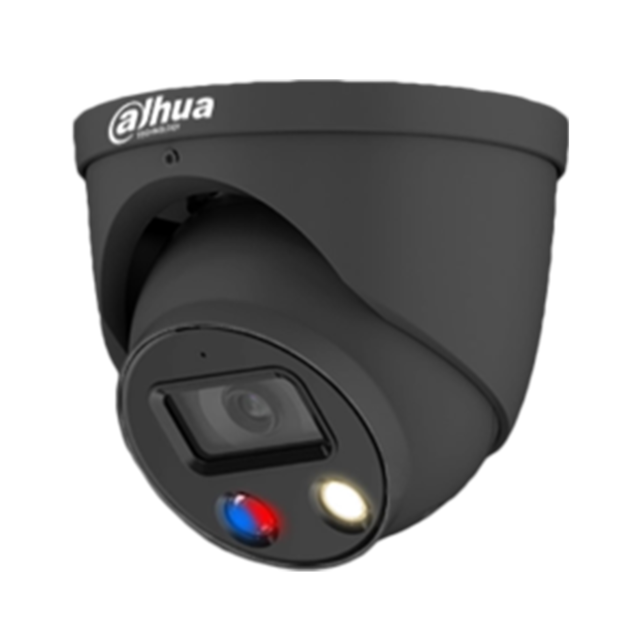

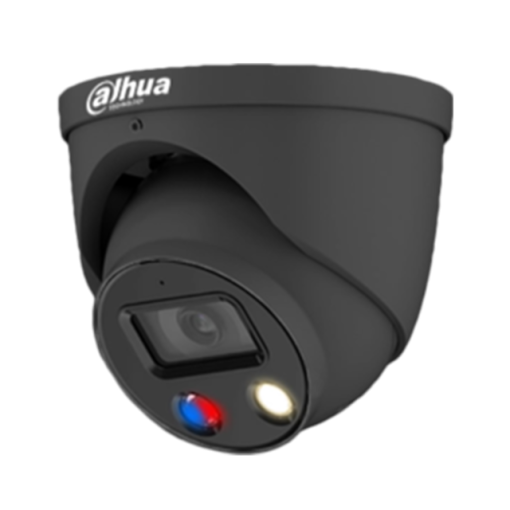

DAHUA 4MP WIZSENSE TURRET 2.8MM – LIGHT & ALARM – BLACK

Model: Dahua DH-IPC-HDW3449HP-AS-PV-0280B-S4-B

4 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

Features

• 4 MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2688 × 1520)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
• 12 VDC/PoE power supply.
• IP67 protection.
• Sound and light alarm (red and blue lights).
• SMD 3.0.
• One press arming/disarming through alarm input.

Specifications

Camera

• Image Sensor: 1/2.7″ CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination
  • 0.003 [email protected] (Color, 30 IRE)
  • 0.0003 [email protected] (B/W, 30 IRE)
  • 0 lux (illuminator on)
• S/N Ratio: ﹥ 56 dB
• Illumination Distance
  • 30 m (98.43 ft) (IR)
  • 30 m (98.43 ft) (warm light)
• Illuminator On/Off Control: Auto; manual
• Illuminator Number
  • 1 (IR LED)
  • 1 (warm light)
• Pan/Tilt/Rotation Range
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm; 3.6 mm
• Field of View: 2.8 mm: Horizontal: 101°× Vertical: 53°× Diagonal: 120°
• Iris Type: Fixed
• Close Focus Distance: 2.8 mm: 1.5 m (4.92 ft)
• DORI Distance
• Detect: 66.0 m (216.54 ft)
• Observe: 26.4 m ( 86.61 ft)
• Recognize: 13.2 m (43.31 ft)
• Identify: 6.6 m (21.65 ft)

Professional, intelligent

• IVS (Perimeter Protection): Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
• SMD 3.0: Less false alarm, longer detection distance
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec: Smart H.265+; Smart H.264+
• AI Coding: AI H.265; AI H.264
• Video Frame Rate:
  • Main stream: 2688 × 1520@ (1 fps–30 fps)
  • Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
  • Third stream: 1920 × 1080@ (1 fps–30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 3 streams
• Resolution: 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–20480 kbps
  • H.265: 3 kbps–20480 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-adaptation: Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto; manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Defog: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror: Yes
• Privacy Masking: 8 areas

Audio

• Built-in MIC: Yes
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
• User/Host: 20 (Total bandwidth: 72 M)
• Storage; FTP; SFTP; Micro SD card (Support max. 256 G); NAS
• Browser:
  • IE: IE8/9/11
  • Chrome
  • Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Phone: iOS; Android

Certification

• Certification:
  • CE-LVD: EN 62368-1;
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
  • FCC: 47 CFR FCC Part 15, Subpart B;
  • UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: 5 mA 3V–5 VDC
• Alarm Output: 1 channel out: 300 mA 12 VDC

Power

• Power Supply: 12 VDC/PoE (802.3af)
• Power Consumption:
  • Basic: 1.75 W (12 VDC); 3.6 W (PoE)
  • Max. (H.265+main stream/IR intensity+warm light on): 6.4W (12 VDC) 8.6 W (PoE)

Environment

• Operating Conditions: –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
• Storage Conditions: –40 °C to +60 °C (–40 °F to +140 °F)
• Protection Grade: IP67

Structure

• Casing: Metal
• Dimensions: 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
• Net Weight: 745 g (163.1 lb)
• Gross Weight: 915 g (200.6 lb)
