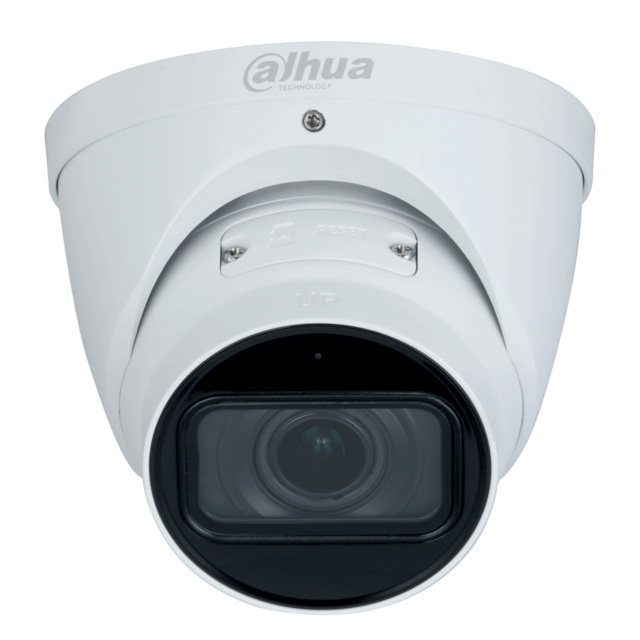

DAHUA 4MP WIZMIND TURRET VARIFOCAL 2.7MM–13.5MM

Model: Dahua DH-IPC-HDW5442TP-ZE-2712

4MP IR Vari-focal Eyeball WizMind Network Camera

Features

• 4MP, 1/1.8″ CMOS image sensor, low illuminance, high image definition
• Outputs max. 4MP (2688 × 1520) @30 fps, 2MP(1920 × 1080) @60 fps
• Built-in IR LED, max. IR distance: 40 m
• ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Supports max. 256 G Micro SD card, built-in Mic
• 12V DC/PoE power supply, ePoE network transmission over long distance, easy for installation
• IP67 protection
• SMD 3.0

Specifications

Camera

• Image Sensor: 1/1.8” CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 MB
• RAM: 1GB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination:
  • 0.003 [email protected] (Color, 30IRE)
  • 0.0003 [email protected] (B/W, 30IRE)
  • 0 Lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance: 40 m (131.2 ft) (IR LED)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 2 (IR LED)
• Pan/Tilt/Rotation Range:
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens

• Lens Type: Motorized vari-focal
• Mount Type: φ14
• Focal Length: 2.7 mm-12 mm
• Max. Aperture: F1.8
• Field of View:
  • Horizontal: 114°–47°
  • Vertical: 62°–26°
  • Diagonal: 136°–54°
• Iris Type: Auto
• Close Focus Distance: 1.2 m (3.9 ft)
• DORI Distance:
  • Detect: W-58m T-131m
  • Observe: W-23 T52m
  • Recognize W-12 T-26m
  • Identify W-6m T-13m

Smart Event

• IVS: Abandoned object; missing object
• Heat Map: Yes

Professional, intelligent

• IVS (Perimeter Protection): Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
• Face Detection: Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
• People Counting:
  • Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports.
  • Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
  • Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec: Smart H265+/H264+
• Video Frame Rate:
  • Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
  • Sub stream: D1 (1 fps–50/60 fps)
  • Third stream: 1080p (1 fps–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 3 streams
• Resolution: 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 32 kbps–8192 kbps
  • H.265: 19 kbps–8192 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 140 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Electronic Image Stabilization (EIS): Yes
• Smart Illumination: Yes
• Defog: Yes
• Image Rotation: 0°/90°/180°/270°
• Mirror: Yes
• Privacy Masking: 8 areas

Audio

• Built-in MIC: Yes
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; audio detection; people counting; face detection; voltage detection; people counting in area; stay alarm; people No. exception detection, queue management

Network

• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
• User/Host: 20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD Card (support max. 256 G); NAS
• Browser:
  • IE: IE8 and later
  • Chrome
  • Firefox
• Management Software: Smart PSS, DSS, DMSS
• Mobile Phone: IOS; Android

Certification

• Certification:
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B
  • UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

• Power Supply: 12V DC (±30%)/PoE (802.3af)/ePoE
• Power Consumption:
  • Basic power consumption: 1.9W (12V DC); 2.2W (PoE)
  • Max. power consumption H.265 + max. stream + intelligent function + IR LED+focus: 6W (12V DC); 6.9W (PoE)

Environment

• Operating Conditions: –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
• Strorage Conditions: –40°C to +60°C (–40°F to +140°F)
• Protection Grade: IP67

Structure

• Casing
  • Inner core: Metal
  • Cover: Metal
  • Decoration ring: Plastic Decoration ring
• Dimensions: Φ122.0 mm × 108.3 mm (Φ4.8″ × 4.3″)
• Net Weight: 740 g (1.6 lb)
• Gross Weight: 910 g (2.0 lb)
