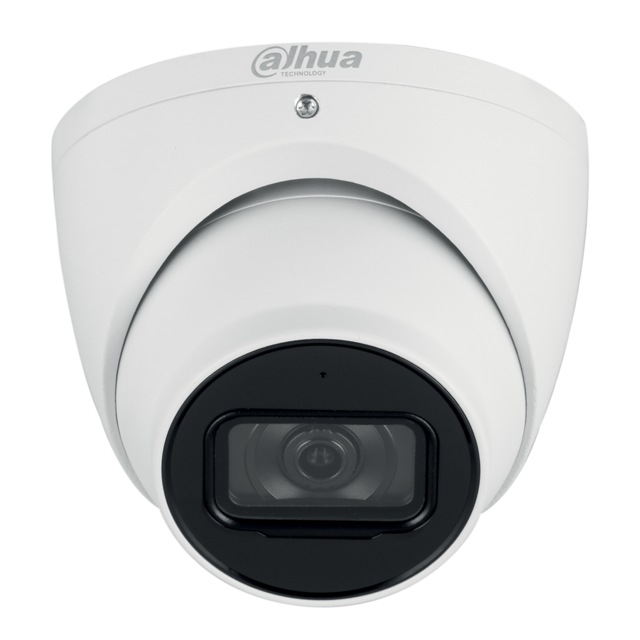

DAHUA 4MP WIZMIND TURRET 2.8MM

Model: DAHUA DH-IPC-HDW5442TMP-ASE-0280B

4MP IR Fixed-focal Eyeball WizMind Network Camera

Features

• 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2688 × 1520) @30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, and the max. illumination distance is 50 m.
• ROI, SVC, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitorin.
• Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Supports max. 256 G Micro SD card, built in MIC.
• 12 VDC/PoE power supply, easy for installation.
• ePoE; IP67 protection.
• SMD 3.0

Specifications

Camera

• Image Sensor: 1/1.8″ CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination
  • 0.002 [email protected] (Color, 30 IRE)
  • 0.0002 [email protected] (B/W, 30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance: 50 m (164.04 ft) (IR)
• Illuminator On/Off Control: Auto; manual
• Illuminator Number: 2 (IR LED)
• Pan/Tilt/Rotation Range
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.6
• Field of View: 2.8 mm: Horizontal: 113°; Vertical: 60°; Diagonal: 134°
• Iris Control: Fixed
• Close Focus Distance: 2.8 mm: 1.3 m (4.27 ft)
• DORI Distance
• Detect: 57.9 m (189.96 ft)
• Observe: 23.2 m (76.12 ft)
• Recognize: 11.6 m (38.06 ft)
• Identify: 5.8 m (19.03 ft)

Smart Event

• IVS: Abandoned object; missing object
• Heat Map: Yes

Professional, intelligent

• IVS (Perimeter Protection): Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
• SMD 3.0: Less false alarm, longer detection distance
• Face Detection: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting
• People Counting: Tripwire people counting, generating and exporting report (day/month); people counting in area; queue management; 4 rules can be set for tripwire, people counting in area and queue management.
• Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec: Smart H.265+; Smart H.264+
• AI Coding: AI H.265; AI H.264
• Video Frame Rate:
  • Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
  • Sub stream: D1@(1–25/30 fps)
  • Third stream: 1080p@(1–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 3 streams
• Resolution: 2688 × 1520; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–20480 kbps
  • H.265: 3 kbps–20480 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 140 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto; manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Defog: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)
• Mirror: Yes
• Privacy Masking: 8 areas

Audio

• Built-in MIC: Yes
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; SMD; people counting in area; stay detection; people counting; security exception

Network

• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Network Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
• User/Host :20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS
• Browser:
  • IE: IE 8 and later
  • Chrome
  • Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Client: iOS; Android

Certification

• Certifications
  • CE-LVD: EN60950-1;
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
  • FCC: 47 CFR FCC Part 15, Subpart B;
  • UL/CUL:
    • UL60950-1
    • CAN/CSA C22.2 No.60950-1-07

Power

• Power Supply: 12 VDC/PoE (802.3af)/ePoE
• Power Consumption
  • Basic: 2.1 W (12 VDC); 2.6 W (PoE)
  • Max. (H.265 + three streams + intelligence on + IR on): 6.2 W (12 VDC); 7.2 W (PoE)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ≤95%
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Protection: IP67

Structure

• Casing: Metal + plastic
• Product Dimensions: Φ106 mm × 93.6 mm (Φ4.17″ × 3.69″)
• Net Weight: 545 g (1.20 lb)
• Gross Weight: 710 g (1.57 lb)
