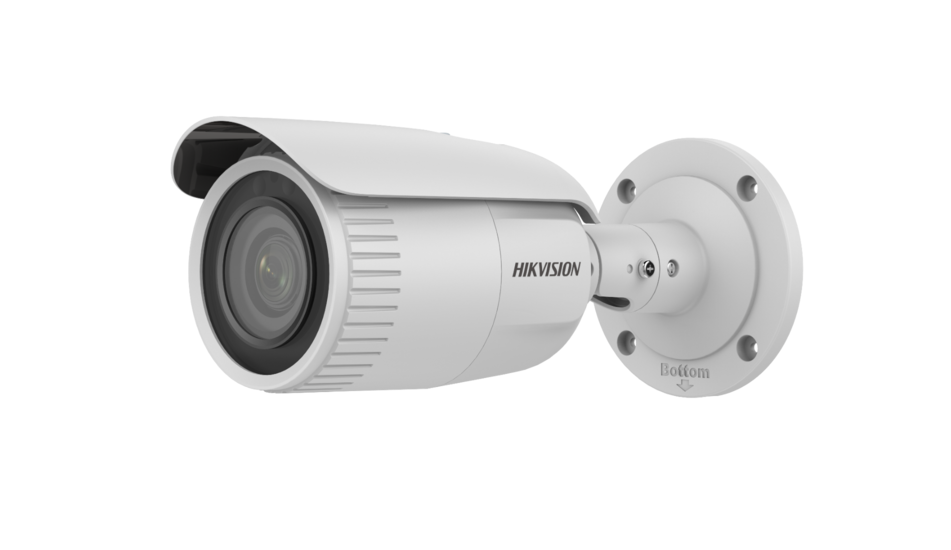

HIKVISION 4MP 2.8-12MM VARIFOCAL BULLET IP CAMERA

Model: Hikvision DS-2CD1643G0-IZ(2.8-12mm)

4 MP Varifocal Bullet Network Camera

Features

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Up to 256 GB SD card slot for storage
• 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range

Specifications

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Wide Dynamic Range: 120 dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens

• Lens Type: Varifocal lens, motor-driven lens, 2.8 to 12 mm
• Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

Illuminator

• IR Wavelength: 850 nm
• IR Range: Up to 50 m

Video

• Main Stream:
  • 50 Hz: 20 fps (2560 × 1440)
  • 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (2560 × 1440)
  • 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 1 fixed region for main stream

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect
• Web Browser:
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Image Enhancement: BLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
• Reset Key: Yes

Event

• Basic Event: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General

• Power:
  • 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
• Camera Material: Metal
• Camera Dimension: Ø105 mm × 244.4 mm (Ø4.1″ × 9.6″)
• Package Dimension: 315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
• Camera Weight: Approx. 1035 g (2.3 lb.)
• With Package Weight: Approx. 1550 g (3.4 lb.)
• Storage Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015);
  • IC VoC (ICES-003: Issue 6, 2016);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 60950-1);
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment:
  • CE-RoHS (2011/65/EU);
  • WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
• Electrical Safety Protection: IP67 (IEC 60529-2013)
