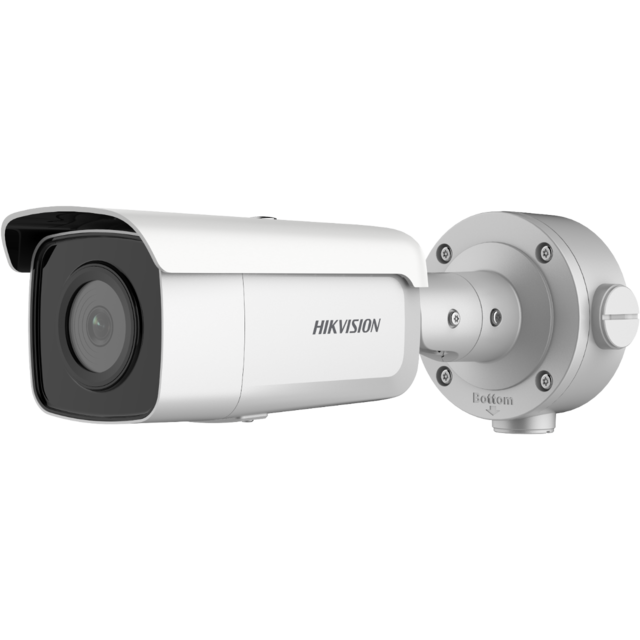

HIKVISION 8MP 4K BULLET 4.0MM + AUDIO/ALARM

Model: Hikvision DS-2CD3T86G2-4IS(4.0mm)

8 MP IR Fixed Bullet Network Camera

Features

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices.
The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Advanced streaming technology that enables smooth live view and data self-correcting in poor network
• Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 120 dB
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Lens Type Fixed focal lens 4mm
• Iris Type Fixed
• Lens Mount M12
• Focal Length & FOV
• 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
• Aperture F1.6

DORI

• DORI:
  • 4 mm: D: 107 m, O: 42 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: IR
• IR Range: Up to 90 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Max. Resolution: 3840×2160
• Main Stream
  • 50 Hz: 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
  • 60 Hz: 24 fps (3840×2160)
  • 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
• Sub-Stream
  • 50 Hz: 25 fps (640×480, 640×360)
  • 60 Hz: 30 fps (640×480, 640×360)
• Third Stream
  • 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)
  • 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)
    *Third stream is supported under certain settings.
• Fourth Stream
  • 50 Hz: 10 fps (1280×720, 640×480, 640×360)
  • 60 Hz: 10 fps (1280×720, 640×480, 640×360)
    *Fourth stream is supported under certain settings.
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
  • Fourth stream: H.265/H.264/MJPEG
    *Third stream and fourth stream are supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 5 fixed regions for main stream and sub-stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Network Storage:
  • MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Target Cropping: Yes
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• Audio:
  • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 2.2 KΩ, interface type: non-equilibrium;
  • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp,output impedance: 100 Ω
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Power Output: 12 VDC, max. 100 mA (supported by all power supply types)

Event

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

• Linkage Method: Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
• Firmware Version: V5.5.112
• Web Client Language:
• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software Reset: Yes
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3at, Class 4
• Power Consumption and Current:
  • 12 VDC, 1.05A, max. 13 W
  • PoE (802.3at, 42.5 V to 57 V), 0.33 A to 0.25 A, max. 14 W
• Power Interface: Ø 5.5 mm coaxial power plug
• Camera Material: Metal
• Camera Dimension: Ø 105 mm x 325.5 mm (Ø 4.1″ × 12.8″)
• Package Dimension: 386 mm x 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
• Camera Weight: Approx. 1110 g (2.4 lb.)
• With Package Weight: Approx. 1610 g (3.5 lb.)

Approval

• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • IC VoC (ICES-003: Issue 6, 2019);
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 60950-1);
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  • CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017);
  • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment
  • CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006);
  • Protection IP67 (IEC 60529-2013)
