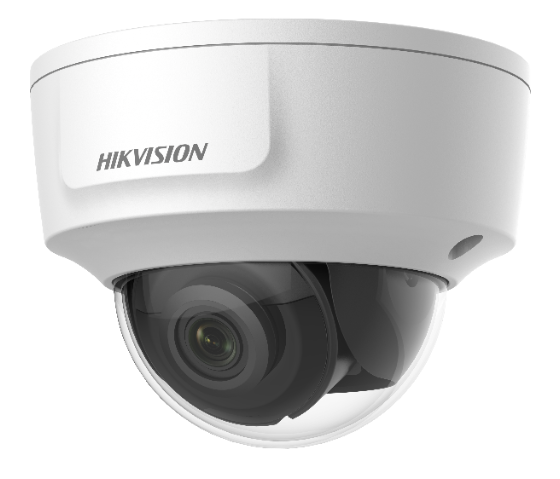

HIKVISION 2MP DOME 2.8MM + HDMI OUTPUT

Model: Hikvision DS-2CD2125G0-IMS(2.8mm)

2 MP HDMI Fixed Dome Network Camera

Features

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Direct HD live view with HDMI output
• Vandal proof (IK10)
• Robust structure design with full metal materials.

Specifications

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Lens Type: 2.8 mm
• FOV: 2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°
• Aperture: F1.6
• Lens Mount: Φ12

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850nm

Video

• Max. Resolution: 1920 × 1080
• Main Stream: 50Hz: 50fps (1920 × 1080, 1280 × 720) ;60Hz: 60fps (1920 × 1080, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) ;60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: No
• H.265+: No
• Scalable Video Coding (SVC): H.264 and H.265 encoding support
• Region Of Interest (ROI): Support 1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHZ/48kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• User/Host: Up to 32 users ,3 levels: Administrator, Operator and User
• Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Audio: 1 input (line in/mic in, terminal block), 1 output ( two-core terminal block), mono sound
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
• Video Output: 1 HDMI™, type D, female plug (-M)
• On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Smart Event: Line crossing detection, intrusion detection
• Face Detection: Yes

General

• General Function: Anti-flicke, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions: IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) ; IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Power Consumption And Current: 12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
• Camera Dimension: Camera: Φ 119 × 90 mm (Φ 4.7″ × 3.5″)
• Camera Weight: Camera: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.)

Approval

• Protection: IK10
