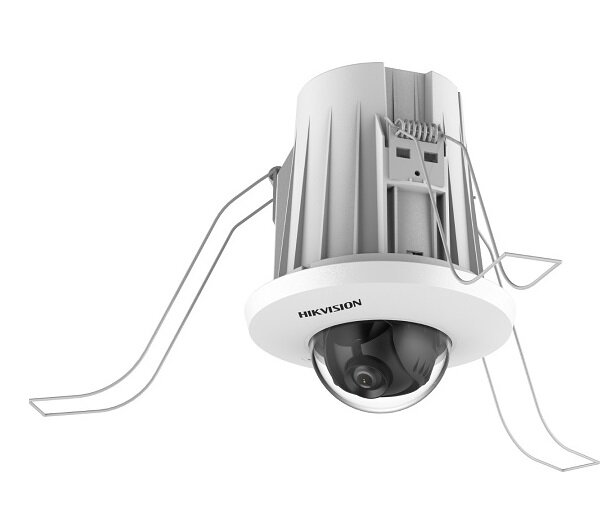

HIKVISION 4MP DOME 2.8MM

Model: Hikvision DS-2CD2E43G2-U 2.8mm

4 MP AcuSense In-Ceiling Fixed Mini Dome Network Camera

Features

• High quality imaging with 4 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Built-in microphone for real-time audio security
• Focus on human and vehicle targets classification based on deep learning

Specifications

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Angle Adjustment: Tilt: 0° to 75°

Lens

• Lens Type & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
• Aperture: F1.6
• Lens Mount: M12

DORI

• 2.8 mm: D: 56 m, O: 22 m, R: 11 m, I: 6 m

Video

• Main Stream:
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression:
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK , ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE,SNMP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view : Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Built-In Microphone: Yes
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Face Detection: Yes

Deep Learning Function

• Perimeter Protection:
  • Line crossing, intrusion
  • Support alarm triggering by specified target types (human and vehicle)

General

• Power:
  • 12 VDC ± 25%, 0.27 A, max. 3.2 W, two-core terminal block
  • PoE: (802.3af, 36 V to 57 V), Class 3, 0.12 A to 0.07 A, max. 4.2 W
• Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Web Client Language : 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General

• General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
• Storage Conditions: -10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)
• Material: Plastic body
• Screw Material: SUS304
• Camera Dimension: Ø93.9 × 117.5 mm (Ø3.7″ × 4.6″)
• Package Dimension: 135 × 135 × 183 mm (5.3″ × 5.3″ × 7.2″)
• Camera Weight: Approx. 155 g (0.3 lb.)
• With Package Weight: Approx. 325 g (0.7 lb.)

Approval

• EMC:
  • FCC (47 CFR Part 15, Subpart B);
  • CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
  • RCM (AS/NZS CISPR 32: 2015)
• Safety:
  • UL (UL 62368-1);
  • CB (IEC 62368-1:2014+A11);
  • CE-LVD (EN 62368-1:2014/A11:2017)
• Environment:
  • CE-RoHS (2011/65/EU);
  • WEEE (2012/19/EU);
  • Reach (Regulation (EC) No 1907/2006)
