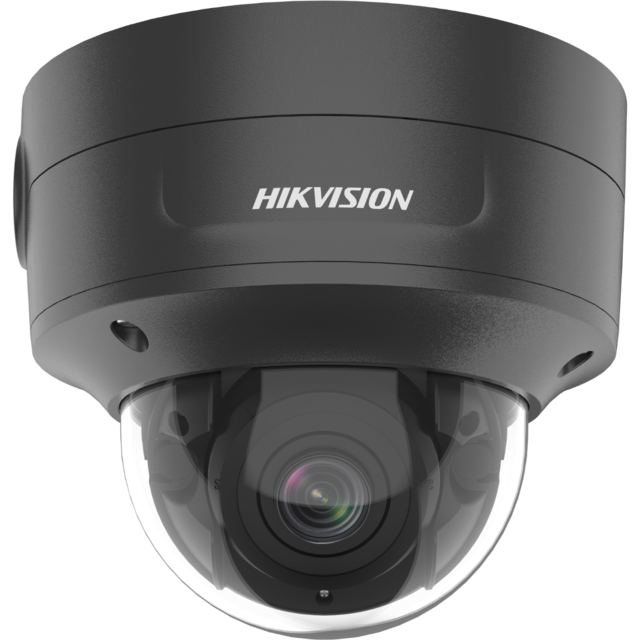

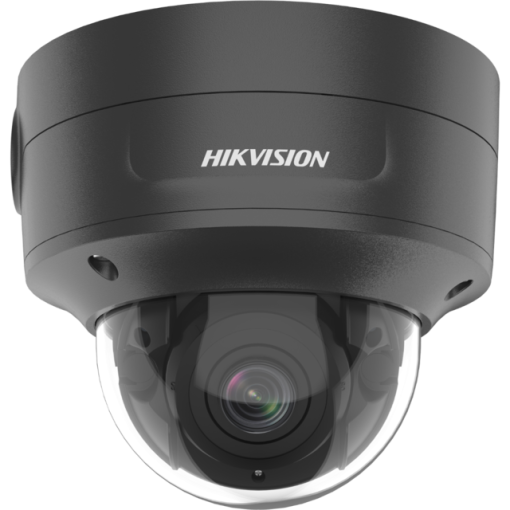

HIKVISION 4MP DOME VARIFOCAL 2.8-12MM + AUDIO/ALARM – BLACK

Model: Hikvision DS-2CD2746G2-IZS (2.8-12MM) BLACK

4 MP AcuSense Motorized Varifocal Dome Network Camera

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Motorized varifocal lens for easy installation and monitoring
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal-resistant (IK10)

Specifications

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Slow Shutter: Yes
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• P/N: P/N
• Wide Dynamic Range: 120 dB
• Power-Off Memory: Yes

Lens

• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
• Lens Type: Varifocal lens, motor-driven lens, 2.8 to 12 mm
• Aperture: F1.4
• Lens Mount: Ø14
• Iris Type: Fixed

DORI

• DORI:
  • 2.8 to 12 mm:
  • Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
  • Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m

Illuminator

• IR Range: Up to 40 m
• IR Wavelength: Yes
• Smart Supplement Light: Yes
• Supplement Light Type: IR

Video

• Max. Resolution: 2688 × 1520
• Main Stream:
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • *Third stream is supported under certain settings.
• Video Compression:
  • Main stream: H.265/H.264/H.265+/H.264+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
  • *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main Stream supports
• H.265+: Main stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter,
  Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage:
  • MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Audio:
  • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
  • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Scene change detection

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 25%
  • PoE: 802.3af, Class 3
• Power Consumption And Current:
  • 12 VDC, 0.88 A, max. 10.5 W
  • PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
• Power Interface: Ø5.5 mm coaxial power plug
• Camera Dimension: Ø153.5 mm× 133.1 mm (Ø6.0″ × 5.2″)
• Package Dimension: 244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
• Camera Weight: Approx. 845 g (1.9 lb.)
• With Package Weight: Approx. 1714 g (3.8 lb.)
• Linkage Method: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
• Web Client Language:
  • 33 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
    Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,
    Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software Reset: Yes
• Firmware Version: V5.5.112

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
  EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 60950-1);
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
  • LOA (IEC/EN 60950-1)
• Environment: CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection: IP66 (IEC 60529-2013), IK10(IEC 62262:2002)
