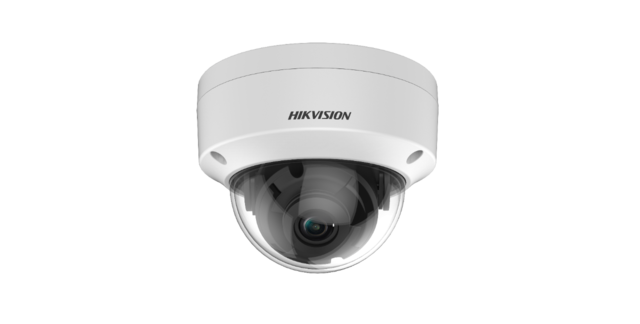

HIKVISION 5MP DOME 2.8MM

Model: Hikvision DS-2CE57H0T-VPITF(2.8mm)(C)

5 MP Camera

Features

• 5 MP dome camera
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specifications

Camera

• Image Sensor: 5 MP CMOS image sensor
• Signal System: PAL/NTSC
• Frame Rate: TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC
• Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Lens: 2.8 mm fixed lens
• Horizontal Field Of View: 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
• Lens Mount: M12
• Day & Night: ICR
• WDR (Wide Dynamic Range): Digital WDR
• Angle Adjustment: Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°

Menu

• Image Mode: STD/HIGH-SAT
• AGC: Support
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: ATW/MANUAL
• HLC: Yes
• BLC (Backlight Compensation): Yes
• Language: English
• Functions: Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

• Video Output: TVI/AHD/CVI/CVBS

General

• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply: 12 VDC ±25%
• Power Consumption: Max. 4.3 W
• Protection Level: IP67 IK10
• Material: Metal
• IR Range: Up to 20 m
• Communication: HIKVISION-C
• Dimensions: Φ 100.4 mm × 82.4 mm (Φ 4″ × 3.2″)
• Weight: Approx. 362 g (0.80 lb.)
