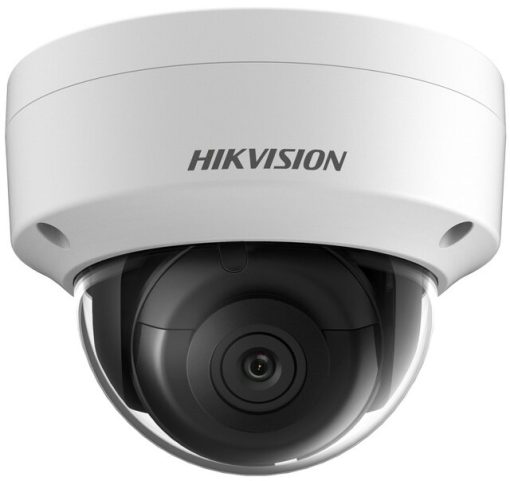

HIKVISION 8MP 4K DOME 4.0MM + AUDIO/ALARM

Model: Hikvision DS-2CD2183G2-IS(4mm)

8 MP AcuSense Vandal Fixed Dome Network Camera

Features

• High quality imaging with 8 MP resolution
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• -S: Audio and alarm interface available
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Specifications

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 120 dB
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Lens Type: Fixed focal length, 2.8 and 4 mm optional
• Focal Length & FOV: 4.0 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI

• DORI: 4.0 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

Illuminator

• Supplement Light Type: IR
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• IR Range: Up to 30 m

Video

• Max. Resolution: 3840 × 2160
• Main Stream:
  • 50 Hz: 20 fps (3840 × 2160)
  • 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (3840 × 2160)
  • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • *Third stream is supported under certain settings.
• Video Compression:
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
  • *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-S: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view : Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Audio-S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono sound
• Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
• Hardware Reset: Yes

Event

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Face Detection: Yes

Deep Learning Function

• Perimeter Protection:
  • Line crossing detection, intrusion detection
  • Supports human and vehicle targets classification

General

• Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Camera Material:
  • Aluminum alloy body
  • Bubble: plastic
• Camera Dimension: Ø110.8 mm × 84.7 mm (Ø4.4″ × 3.3″)
• Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
• Camera Weight: Approx. 520 g (1.1 lb.)
• With Package Weight: Approx. 720 g (1.6 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Web Client Language:
  • 33 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
    Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,
    Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
• Firmware Version: V5.5.113
• Software Reset: Yes
• Power Consumption And Current:
  • 12 VDC, 0.5 A, max. 6 W
  • PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
• Power Supply:
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3af, Class 3
• Power Interface: Ø5.5 mm coaxial power plug

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
  EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
