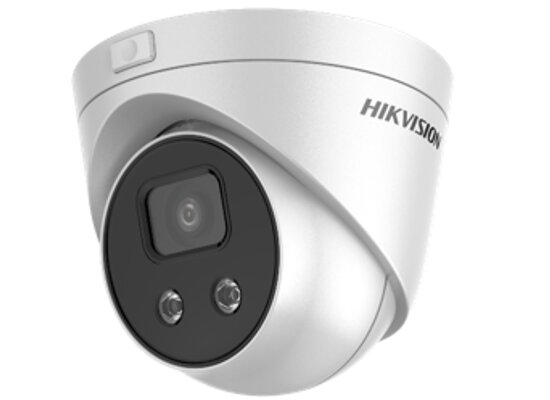

HIKVISION 4MP TURRET 2.8MM

Model: Hikvision DS-2CD2346G2-I (2.8mm)

AcuSense 4 MP IR Fixed Turret Network Camera

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• False alarm reduction through human and vehicle target classification based on deep learning
• -I: Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: ICR Cut
• Slow Shutter: Yes
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• P/N: P/N
• Wide Dynamic Range: 120 dB

Lens

• Lens Type & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
• Aperture: F1.4
• Lens Mount: M12
• Aperture Type: Fixed

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850 nm
• Smart Supplement Light: Yes
• Supplement Light: IR

Video

• Max. Resolution: 2592 × 1944
• Main Stream:
  • 50Hz: 20fps (2592 × 1944) @ 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • 60Hz: 20fps (2944 × 1656)@ 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream:
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream
  • 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
  • 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
• Video Compression:
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main Stream supports
• H.265+: Main Stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region of Interest (ROI): 1 fixed regions for each stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth Streaming: Yes
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security:
  • Password protection, complicated password, HTTPS encryption, IP address filter,
  • Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
• Network Storage:
  • microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+


• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• On-board Storage: Built-in micro SD slot, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Intelligent (Traditional Algorithm)

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection

Intelligent (Deep Learning Algorithm)

• Face Capture: Yes
• Premier Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 25%, reverse polarity protection
  • PoE: 802.3af, class 3
• Power Consumption and Current:
  • 12 VDC, 0.48 A, max. 5.8 W
  • PoE: (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
• Power Interface: Ø 5.5 mm coaxial power plug
• Material: Metal except for trim ring
• Camera Dimension: Ø 138.3 × 126.3 mm (5.4″ × 5.0″)
• Package Dimension: 170 × 170 × 150 mm (6.7″ × 6.7″ × 5.9″)
• Camera Weight: 770 g (1.7 lb.)
• With Package Weight: 1073 g (2.4 lb.)
• Linkage Method: Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning
  • *Note: External device is required.

Web Client Language:

• 32 languages:
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
  • French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
  • Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
  • Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti- flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Software Reset: Yes

Approval

• EMC:
  • FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
  • 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
  • (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
  • 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
  • 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection: -I: Ingression protection: IP67 (IEC 60529-2013)
