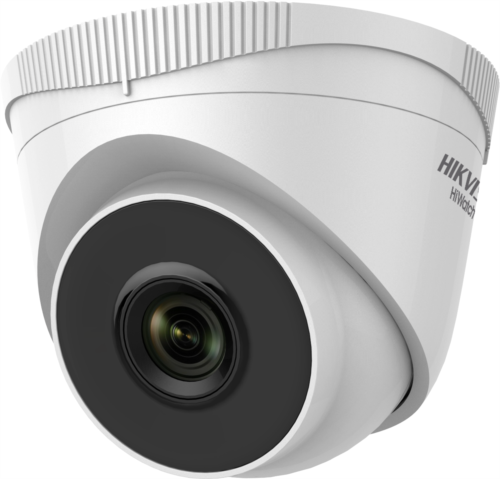

HIKVISION HIWATCH 2MP TURRET OUTDOOR 2.8MM

Model: Hikvision HWI-T221H(2.8mm)

2.0 MP IR Network Turret Camera

Features

• 1/2.8″ progressive scan CMOS
• 1920 × 1080@30fps
• 2.8 mm/4 mm fixed lens
• H.265+/H.265/H.264+/H.264
• Dual stream
• Digtal WDR (Wide Dynamic Range)
• 3D DNR (Digital Noise Reduction)
• Up to 30 m IR range
• PoE (Power over Ethernet)
• IP67

Specifications

Camera

• Appearance: Turret
• Image Sensor: 1/2.8″ progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
• Slow Shutter: Yes
• Auto-Iris: No
• Day & Night: IR cut filter
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens

• Focal Length: 2.8 mm, 4 mm
• Aperture: F2.0
• Focus: Fixed
• Angle of view: 2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°
• 4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
• Lens Mount: M12

IR

• IR Range: Up to 30 m
• Wavelength: 850 nm

Compression Standard

• Video Compression: Main stream: H.265+/H.265/H.264+/H.264.
• Sub stream: H.265/H.264/MJPEG
• H.264 Type: Main Profile/High Profile/Baseline Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-Set

• Region of Interest: 1 fixed region for main stream


• Resolution: 2MP
• Main Stream Max. Frame Rate:
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-stream Max. Frame Rate:
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement: BLC, 3D DNR
• Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled, day, night

Network

• Alarm Trigger: Motion detection, video tampering alarm, illegal login
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• API: ONVIF (PROFILE S), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users
• 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug
• PoE (802.3af, class 3)
• Power Consumption: 12 VDC, 0.3 A, max: 3.5 W
• PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
• Ingress Protection level: IP67
• Material: Camera body: metal, bottom base: plastic
• Dimensions: Camera: Ø 110 mm × 93.2 mm (Ø 4.3″ × 3.7″)
• With package: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Camera: approx. 360 g (0.8 lb.)
• With package: approx. 610 g (1.3 lb.)
