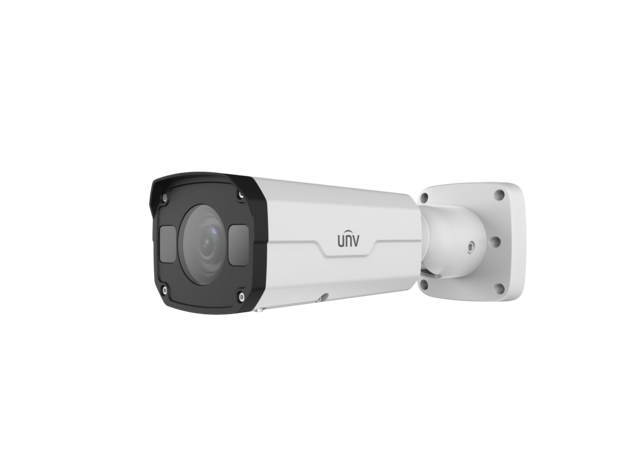

UNIVIEW EASY 8MP BULLET VARIFOCAL 2.8-12MM + MICROPHONE

Model: Uniview IPC2328SB-DZK-10

Features

Optics

• Day/night functionality
• Smart IR, up to 50m (164ft) IR distance
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• 2D/3D DNR (Digital Noise Reduction)

Compression

• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• ROI (Region of Interest)
• Customized OSD

Network

• ONVIF Conformance

Structure

• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
• Wide voltage range of ±25%
• IP67
• IK10 vandal resistant

Specifications

Camera

• Sensor: 1/2.8″, 8.0 megapixel, progressive scan, CMOS
• Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
• DORI Distance:
  • Lens (mm): 2.8 , 12
  • Detect (m): 86.9 , 372.4
  • Observe (m): 34.8 , 149.0
  • Recognize (m): 17.4 , 74.5
  • Identify (m): 8.7 , 37.2
• Angle of View (H): 96.23°~ 31.69°
• Angle of View (V): 69.98°~ 24.28°
• Angle of View (O): 125.10°~37.39°
• Adjustment angle: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination:
  • Colour: 0.003Lux (F1.6, AGC ON)
  • 0Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital noise: reduction 2D/3D DNR
• S/N: >56 dB
• IR Range: Up to 50m (164ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Defog: Digital Defog
• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main Profile
• Frame Rate:
  • Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 25fps; 4MP (2560*1440), Max 25fps; 1080P
  • (1920*1080), Max 30fps;
  • Sub Stream:D1(720*576), Max 30fps;
  • Third Stream: CIF (352*288), Max 30fps；
• Video Bit Rate: 128 Kbps~16 Mbps
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: Supported
• HLC: Supported
• BLC: Supported

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR

Smart

• Behavior Detection: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection,
• Tampering: alarm, Audio Detection

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client:
  • EZStation
  • EZView
  • EZLive
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O:
  • Input: impedance 35kΩ; amplitude 2V [p-p]
  • Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• Certifications:
  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15

General

• Power:
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 9.5W
• Dimensions: (L × W × H) 245 × 86 × 72mm (9.6” × 3.4” × 2.8”)
• Net Weight: 1.0kg (2.2lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 6KV
• Ingress Protection: IP67
• Vandal Resistant: IK10
