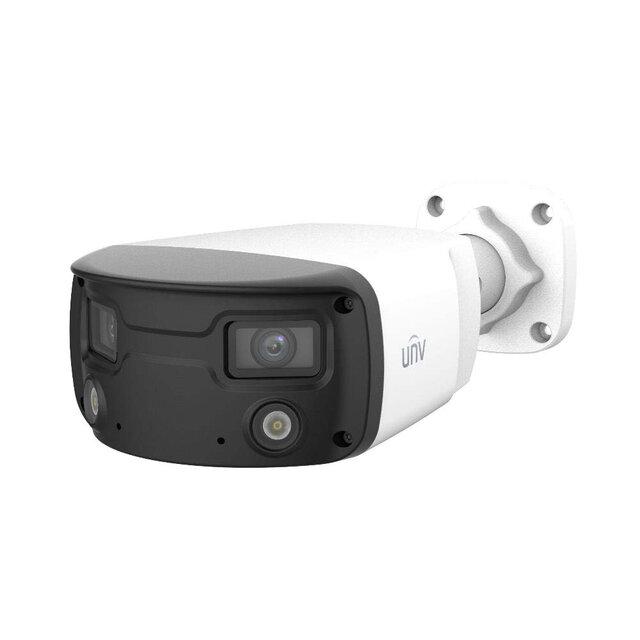

UNIVIEW PRIME III 4MP BULLET COLORHUNTER 4.0MM – WIDE ANGLE

Model: Uniview IPC2K24SE-ADF40KMC-WL-I0

4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera

Features

• High quality image with 4MP, 1/2.9″CMOS sensor
• 4MP (3840*1080)@25fps
• The double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10°
• Ultra 265, H.265, H.264, MJPEG
• Support Human Body Detection
• Colorhunter technology ensures 24-hour full-color images
• Alarm:1 in/1 out
• Audio: 1 in/1 out
• Built-in speaker and dual mics
• Support 256 GB micro SD card
• 12V DC/PoE power supply

Specifications

Camera

• Sensor: 1/2.9 4 .0 progressive scan, CMOS
• Minimum Illumination: Colour: 0.0005 Lux (F1. 0 , AGC ON)
• Shutter: Auto/Manual, 1 1/100000s
• Adjustment angle:
  • Pan: 0° ~ 360° µ
  • Tilt: 0° ~ 90°
  • Rotate: 0° ~ 360°
• WDR: DWDR
• S/N: >56 dB

Lens

• Lens: 2x [email protected]
• Angle of View (H) 160.00°±10°
• Angle of View (V) 43.22°
• Angle of View (O) 180.13°±10°

DORI

• DORI Distance
  • Lens (mm): 4.0
  • Detect (m): 64.3
  • Observe (m): 25.7
  • Recognize (m): 12.9 Identify (m): 6.4

Illuminator

• LED Distance Up to 30m (98ft)
• LEDs Number 2
• LED On/Off Control Auto/Manual

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 4MP (3840*1080), Max 25fps
  • Sub Stream: 1920*540, Max 25fps Video Bit Rate 128 Kbps~16 Mbps
• U-code: Support
• ROI: Up to 8 areas
• Video Stream: Double streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital noise reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: N/A
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Events

• Basic Detection: Human Body Detection ,motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way audio: Support
• Suppression: Support
• Sampling Rate: 8KHZ Storage
• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client:
  • EZStation
  • EZView
  • EZLive
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Audio I/O
  • Input: impedance 35kΩ; amplitude 2V [p-p]
  • Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1 RS485 N/A
• Built-in Mic: Built-in two mics
• Built-in Speaker: Support
• WIFI: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC:
  • FCC CFR 47 Part 15
  • EN 55032:2015
  • EN 55024:2010
  • EN 61000-3-2:2014
  • EN 61000-3-3-2013
• Safety:
  • IEC 62368-1
  • EN 62368-1
  • UL 62368-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 6.5W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (L × W × H): 273× 130 × 76mm (10.7” × 5.1” × 3.0”)
• Weight: 0.95kg (2.09lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge protection: 4KV
• Reset Button: Support
• Protection:
  • Ingression protection: IP67
  • Vandal resistant: N/A
