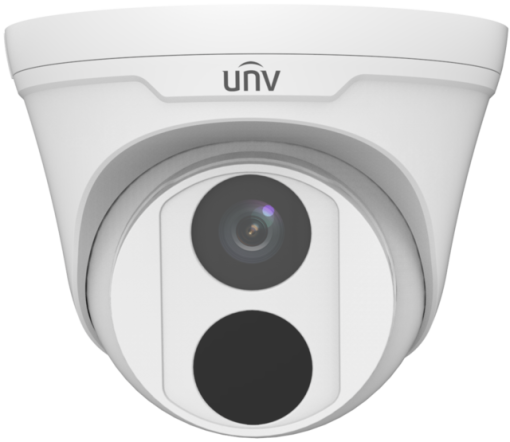

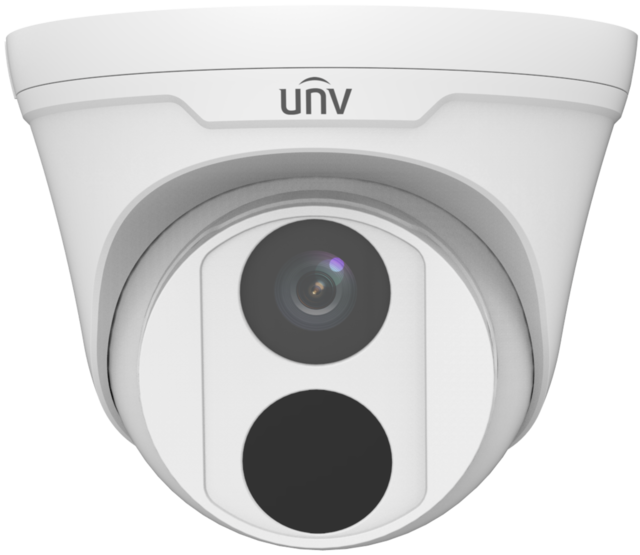

UNIVIEW EASY 4MP TURRET 4.0MM

Model: Uniview IPC3614LE-ADF40K-G

4MP HD IR Fixed Eyeball Network Camera

Features

• High quality image with 4MP, 1/3″CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply

Specifications

Camera

• Sensor: 1/3″, 4.0 megapixel, progressive scan, CMOS
• Lens: [email protected]
• DORI Distance: Lens (mm): 4.0 Detect (m): 90.0 Observe (m): 36.0 Recognize (m): 18.0 Identify (m): 9.0
• Angle Of View (H) 83.7°
• Angle Of View (V) 44.9°
• Angle Of View (O) 89.2°
• Adjustment angle: Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination:
  • Colour: 0.003Lux ( F1.6, AGC ON)
  • 0Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital noise reduction: 2D/3D DNR
• S/N: >56dB
• IR Range: Up to 30m (98ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Defog: Digital Defog
• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440),
    Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576),
    Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• 9:16 Corridor Mode: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported

Smart

• Behavior Detection:
  • Cross line, intrusion(based on human body detection)
  • motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client:
  • EZStation
  • EZView
  • EZLive
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR,NAS(NFS)

Interface

• Network: 10/100M Base-TX Ethernet
• Built-in Mic: Supported

Certifications

• Certifications:
  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15

General

• Power:
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 6.0W
• Dimensions: (Ø x H) Φ118 x 95mm (Φ4.6” x 3.8”)
• Net Weight: 0.35kg (0.77lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 2KV
• Ingress Protection: IP67
• Reset Button: N/A
