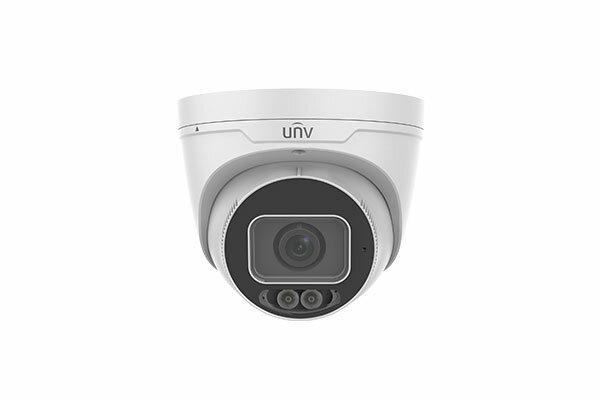

UNIVIEW PRIME COLORHUNTER 8MP TURRET 2.8MM

Model: Uniview IPC3638SE-ADF28KM-WL-I0

4K HD Intelligent ColorHunter Fixed Turret Network Camera

Feature

• High quality image with 8MP, 1/1.8″CMOS sensor
• 8MP (3840*2160)@ 30(AI off)/25fps; 5.3MP (3072*1728)@ 30/25fps; 3.6MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent face capture
• Intelligent People Flow Counting and Crowd Density Monitoring
• Colorhunter technology ensures 24-hour full-color images
• F1.0 Super aperture
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant and IP67 protection

Specifications

Camera

• Sensor: 1/1.8″, 8.0 megapixel, progressive scan, CMOS
• Minimum Illumination: Colour: 0.001Lux (F1.0, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle : Pan: 0° ~ 360°: Tilt: 0° ~ 72°: Rotate: 0° ~ 360°
• WDR: 120dB
• S/N: >56dB

Lens

• Lens: [email protected]
• Angle of view(H): 110.15°
• Angle of View (V): 59.06°
• Angle of View (O): 143.19°
• DORI:
• DORI Distance: Observe (m): Recognize (m): Identify (m)
• Lens (mm): 2.8
• Detect (m): 63.0
• Observe (m): 25.2
• Recognize (m): 12.6
• Identify (m): 6.3

Illuminator

• LED Distance: Up to 30m (98ft)
• LEDs Number: 2
• LED On/Off Control: Auto/Manual

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate: Main Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
• Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• ROI: Up to 8 areas
• Video Stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital Noise Reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
• Face capture: Support
• Statistical Analysis: People counting, support tripwire people counting and area people counting

Events

• Basic Detection: Motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client:
  • EZStation
  • EZView
  • EZLive
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Audio I/O:
  • Input: impedance 35kΩ; amplitude 2V [p-p]
  • Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC:
  • FCC CFR 47 Part 15
  • EN 55032:2015
  • EN 55024:2010
  • EN 61000-3-2:2014
  • EN 61000-3-3-2013
• Safety:
  • IEC 62368-1
  • EN 62368-1
  • UL 62368-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power:
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 11W
• Power Interface : Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ129 x 110mm (Φ5.1” x 4.3”)
• Weight: 0.64kg (1.41lb)
• Material: Metal
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Supported
• Protection: Ingression protection: IP67
• Vandal resistant: IK10
