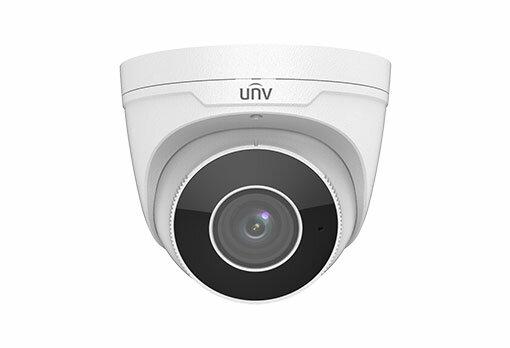

UNIVIEW PRIME 4MP TURRET VARIFOCAL 2.8-12MM

Model: Uniview IPC3634LB-ADZK-G

4MP HD IR Turret Network Camera 2.8 ~ 12mm

Features

• High quality image with 4MP, 1/3″CMOS sensor
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

Specifications

Camera

• Sensor: 1/3″, 4.0 megapixel, progressive scan, CMOS
• Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
• DORI Distance:
  • Lens (mm): 2.8, Detect (m):42, Observe (m):16.8, Recognize (m):8.4, Identify (m):4.2
  • Lens (mm): 12, Detect (m):180, Observe (m):72, Recognize (m):36, Identify (m):36
• Angle of View (H): 102.79°~ 30.86°
• Angle of View (V): 54.50°~ 17.49°
• Angle of View (O): 106.94°~35.49°
• Adjustment angle: Pan: 0° ~ 360°: Tilt: 0° ~ 75°: Rotate: 0° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination:
  • Colour: 0.003Lux (F1.6, AGC ON)
  • 0Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital Noise Reduction: 2D/3D DNR
• S/N: >56dB
• IR Range: Up to 40m (131ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Defog: Digital Defog
• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• 9:16 Corridor Mode: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client: EZStation
• EZView
• EZLive
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Network: 10M/100M Base-TX Ethernet
• Built-in Mic: Supported

Certifications

• Certifications:
  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15

General

• Power:
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 8.0W
• Dimensions (Ø x H): Φ129 x 110mm (Ø5.1” x 4.3”)
• Net Weight: 0.67kg (1.48lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 6KV
• Ingress Protection: IP67
• Reset Button: Supported
