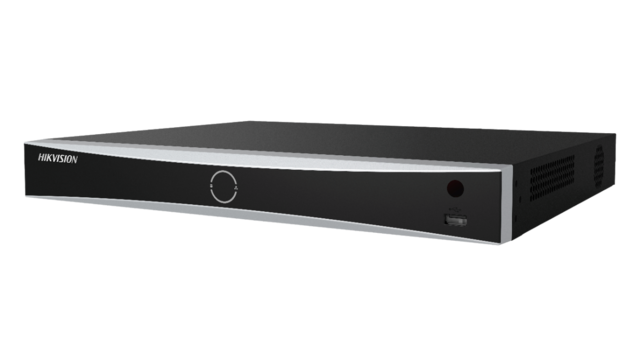

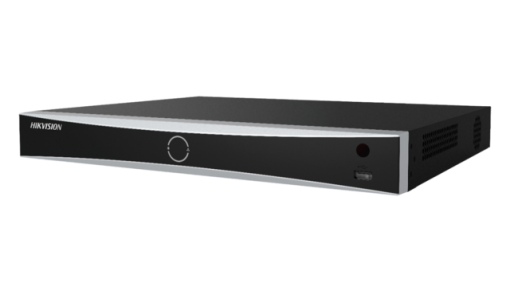

HIKVISION 16 CHANNELS NVR 12MP – 2XSATA/ALARM 4 IN/1OUT/POE

Model: Hikvision DS-7616NXI-K2/16P

AcuSense NVR 16 channels – PoE

Features

Smart Function

• All channels support Motion Detection 2.0
• 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
• Smart search for the selected area in the video, and smart playback to improve the playback efficiency

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• HD Video Output
• Provide independent HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
• 16-ch synchronous playback

Network & Ethernet Access

• 16 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Hik-Connect for easy network management



• Up to 16-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

Specifications

Facial Recognition

• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance: 1-ch human face capture
• Face Picture Comparison: 4-ch face picture comparison alarm

Motion Detection 2.0

• Human/Vehicle Analysis: 16-ch

Video and Audio

• IP Video Input: 16-ch
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDMI Output:
  • 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 ×
  • 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output:
  • 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode HDMI/VGA independent output
• CVBS Output: N/A
• Audio Output:
  • 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding Format: H.265/H.265+/H.264+/H.264
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 16-ch
• Decoding Capability:
  • AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps)
  • AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30fps)
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 200 W
• Standard: IEEE 802.3af/at

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 10 TB capacity for each HDD
• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out: 4/1

General

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight: ≤ 3 kg (without HDD, 6.6 lb.)

Certification

• FCC Part 15 Subpart B, ANSI C63.4-2014
• CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
