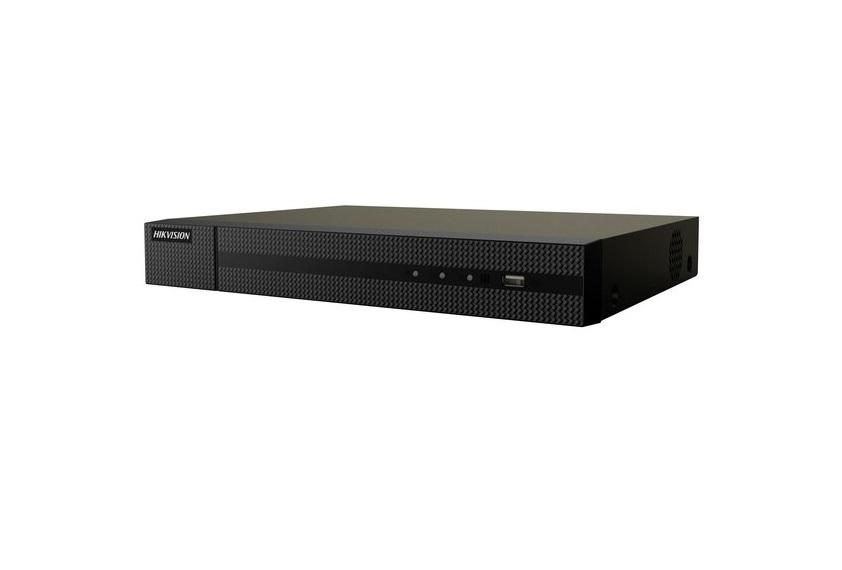

HIKVISION HIWATCH NVR 16CH – 2 HDD (MAX 6B) – 16 POE

Model: HiWatch HWN-4216MH-16P

Features

HD Input

• H.265+/H.265/H.264/H.264+ video formats
• Connectable to the third-party network cameras
• Up to 16 IP cameras can be connected
• Recording at up to 8 MP resolution
• Supports live view, storage, and playback of the connected camera at up to 8 MP resolution

HD Output

• HDMI and VGA independent outputs
• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 2 SATA interfaces connectable for recording and backup
• H.265+ compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1 self-adaptive 10/100/1000 Mbps network interface
• 16 independent PoE network interfaces are provided

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display,
  two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Instant playback for assigned channel during multi-channel display mode
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Hik-Connect for easy network management

Specifications

Video/Audio input

• IP video input:
  • 16-ch
  • Up to 8 MP resolution
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 80 Mbps

Video/Audio output

• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• HDMI output resolution: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output resolution: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio output: 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding format: H.265/H.265+/H.264/H.264+/MPEG4
• Live view / Playback resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 16-ch
• Capability: 1-ch @ 8 MP / 4-ch @ 1080p

Network management

• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA: 2 SATA interfaces
• Capacity: Up to 6TB capacity for each disk

External interface

• Network interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• USB interface: 2 × USB 2.0

POE Interface

• Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 150W
• Standard: IEEE 802.3 af/at

General

• Power supply: 100 to 240 VAC
• Power: ≤ 280W
• Consumption (without hard disk and POE): ≤ 15W
• Working temperature: -10 to +55º C (+14 to +131º F)
• Working humidity: 10 to 90 %
• Chassis: 1U chassis
• Dimensions (W × D × H): 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight(without hard disk): ≤ 2.6 kg (5.7 lb)
