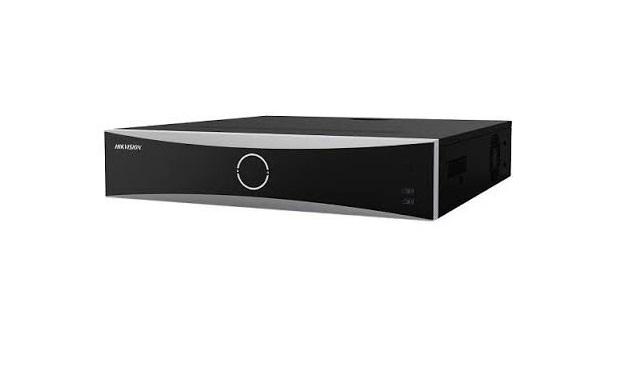

HIKVISION 16 CHANNELS NVR 12MP – 4x SATA – ALARM 16IN/4OUT

Model: Hikvision DS-7716NXI-I4/S

AcuSense Series NVR

Features

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4-ch perimeter protection
• Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
• Up to 16/32-ch IP camera inputs
• Up to 16-ch 1080p decoding capability
• Up to 160/256 Mbps incoming bandwidth

Specifications

Facial Recognition*

• Facial detection and analytics: Face picture comparison, human face capture, face picture search
• Face picture library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
• Face picture comparison: 4-ch face picture comparison alarm
• Performance of facial detection and analytics: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)

Perimeter Protection*

• False alarm reduction: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

*: Facial recognition and perimeter protection cannot be enabled at the same time.
Enable one function will make the other one unavailable

Video and Audio

• IP video input: 16-ch , Up to 12 MP resolution
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 256 Mbps
• HDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
  1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
• HDMI2 output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  HDMI1/VGA simultaneous output
• CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio output: 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding format: H.265+/H.265/H.264+/H.264/MPEG4
• Recording resolution: 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Playback mode: Normal/Smart, Event, Tag, Eternal File
• Synchronous playback: 16-ch
• Live view window division: 1/2/4/6/8/9/16
• Aux port window division: 1/2/4/6/8/9/16
• Capability: 16-ch @ 1080p (30 fps)
• Dual stream recording: Support
• Stream type: Video, Video & Audio
• Audio compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network

• Remote connections: 128
• Network protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Interoperability: Profile S client

Auxiliary interface

• Serial port: RS-485 (half-duplex), RS-232, Keyboard
• SATA: 4 SATA interfaces supporting hot-plug
• Capacity: Up to 6 TB capacity for each disk
• eSATA: 1 eSATA interface
• Alarm in/out: 16/4
• USB interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power supply: 100 to 240 VAC, 50 to 60 Hz
• Total power: ≤ 80 W
• Consumption (without HDD): ≤ 30 W
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 10% to 90%
• Chassis: 19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H): 445 × 400 ×75 mm ( 17.5″× 15.7″ × 3.0″)
• Weight (without HDD): ≤ 5.6 kg (12.3 lb)
