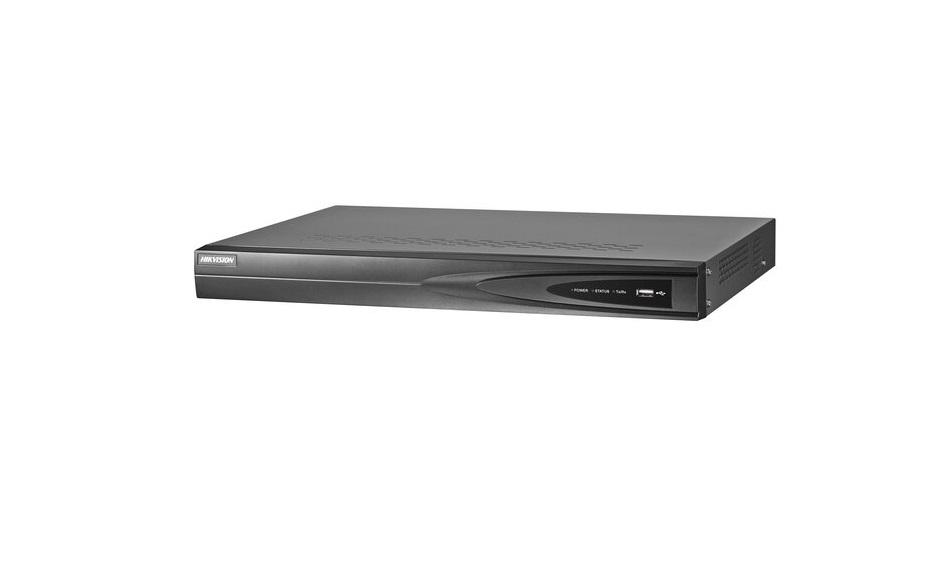

HIKVISION 4 CHANNELS NVR 8MP 4K – 1x SATA – POE

Model: HikVision DS-7604NI-K1/4P(B)

4 Channels 1U 4 PoE Port 8MP 4K NVR

Features

• Up to 4 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264 video formats
• Up to 4K high-definition live view, storage and playback
• Up to 4-ch @ 1080p decoding capacity
• Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
• Simultaneous HDMI and VGA output of the same video stream
• 1 HDD for continuous video recording
• Plug & Play with 4 Power-over-Ethernet (PoE) interfaces

Specifications

Video And Audio

• IP Video Input: 4-ch
• HDMI Output: HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,
  1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
• VGA Output: HDMI,VGA
• Incoming Bandwidth: 40 Mbps ,80 Mbps
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding Format: H.265+,H.265,H.264+,H.264,MPEG4
• Decoding Capability: 1-ch @ 8 MP / 4-ch @ 1080p
• Synchronous Playback: 4-ch
• Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Network

• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 50 W
• Standard: IEEE 802.3 af/at

RAID

• RAID Type: No

Auxiliary Interface

• SATA: 1
• Capacity: Up to 6TB capacity for each disk
• USB Interface: 2 × USB 2.0

General

• Power Supply: 48 VDC,≤ 65 W
• Consumption: ≤ 10 W (without enabling PoE)
• Working Temperature: -10 to +55° C (14 to 131° F)
• Working Humidity: 10 to 90 %
• Chassis: 1U
• Dimension (W × D × H):
  • 315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
  • ≤ 1 kg (2.2 lb)
