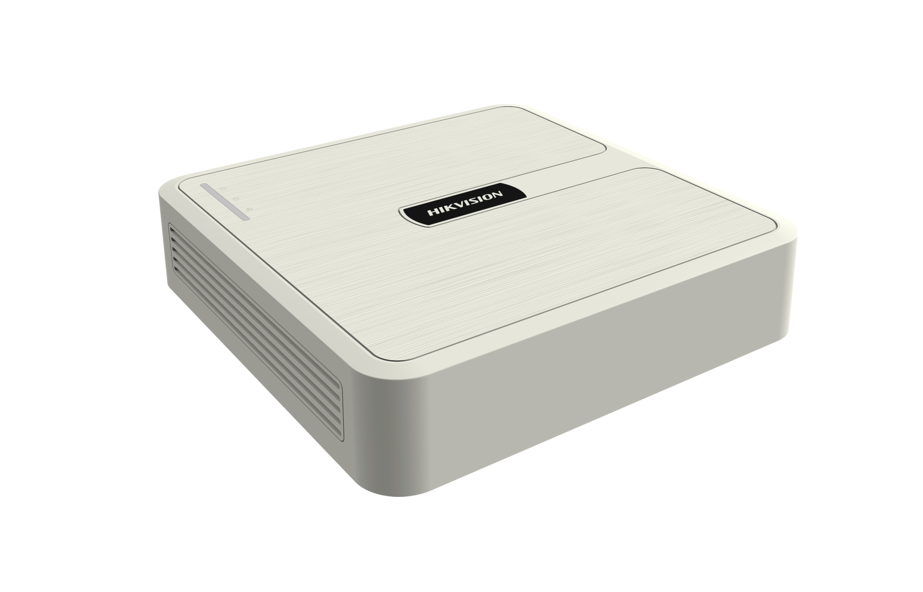

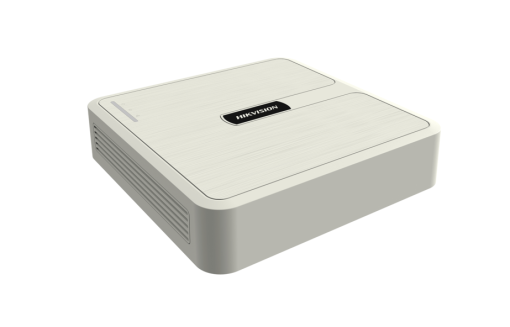

HIKVISION HIWATCH NVR 4CH – 1 HDD – 4 POE

Hikvision Hiwatch HWN-2104H-4P

Features

Video Input and Transmission

• Connectable to the third-party network cameras
• Up to 4 network cameras can be connected

Compression and Recording

• H.265+/H.265 compression effectively reduces the storage space and costs
• Full channel recording at up to 4 MP resolution

HD Video Output

• HDMI/VGA output at 1080p resolution

Storage and Playback

• 1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
• 1 SATA hard disk can be connected with 6TB capacity

Smart Function

• Supports line crossing and intrusion detection
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Network & Ethernet Access

• Hik-Connect for easy network management
• 100 Mbps Ethernet network interface
• 4 independent 100 Mbps built-in switch network interfaces

Specifications

Video input

• IP video input:
  • 4-ch
  • Up to 4 MP resolution

Network

• Incoming bandwidth: 40 Mbps
• Outgoing bandwidth: 60 Mbps

Video output

• Recording resolution: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI/VGA output resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Decoding

• Decoding format: H.265+/H.265/ H.264+/H.264
• Live view/Playback resolution: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback: 4-ch
• Capability: 1-ch @ 4 MP / 2-ch @ 1080p

Hard disk

• SATA: 1 SATA interface
• Capacity: Up to 6TB capacity for each disk

Network management

• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™

External interface

• Network interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
• USB interface: 2 × USB 2.0

POE Interface

• Interface: 4, RJ-45 10/100 Mbps self-adaptive , Ethernet interface
• Power: ≤ 36W
• Standard: IEEE 802.3 af/at

General

• Power supply: 48 VDC
• Power: ≤ 50W
• Consumption (without hard disk and PoE): ≤ 10 W
• Working temperature: -10 to +55º C (+14 to +131º F)
• Working humidity: 10 % to 90 %
• Chassis: 1U chassis
• Dimensions (W × D × H): 200 × 205 × 48 mm (7.9″ × 8.1″ × 1.9″)
• Weight (without hard disk): ≤ 1 kg (2.2 lb)
