BKT F/UTP PVC CAT5e GREY 24AWG 305M FULL COPPER ECA

Model: BKT 10150103.305 (CPR: Eca)

Cable F/UTP PVC cat.5e BKT 285 wire GREY 24AWG (box 305m)



Application:

• Primary (Campus), Secondary(Riser), Tertiary (Horizontal)
• IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;
• IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Standards:

• EIA/TIA 568-C.2
• ISO/IEC 11801 2-nd ed; IEC 61156-5
• EN 50173; EN 50288-2-1

Flame resistance:

• PVC: IEC 60332-1-2

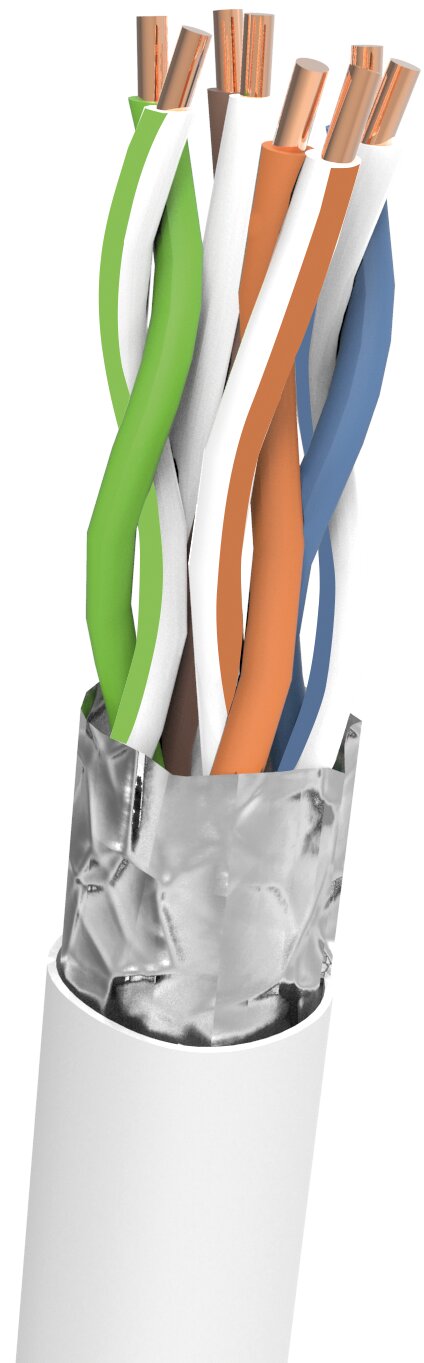

Construction:

• Conductor: Bare copper wire Ø 0,5mm (AWG24)
• Insulation: Polyethylene, Ø 1,1 mm
• Twisting: 2 cores to the pair
• Cable lay up: 4 pairs to the core
• Screen: Al-laminated plastic foil, drain wire AWG26 tinned
• Sheath: PVC alt. LSHF (FRNC, LSOH), grey RAL 7035

Mechanical properties

• Bending radius:
  • • installation: ≥ 25 mm
    • installed: ≥ 50 mm
• Temperature range:
  • • during operation: -20°C to +70°C
    • during installation: 0°C to +60°C

Technical data

• Product name: BKT 285 cat.5e F/UTP 4P PVC
• Cable type: J-02Y(St)Y 4 x 2 x 0.5
• Outer diameter (mm): 5.9
• Fire load:
  • • 430 MJ/km
    • 0.119 KWh/m
• Copper content (kg/km): 19.8
• Weight (kg/km): 36
• Tensile force (N): 80
• Nominal velocity of propagation NVP (%): 75

Certified

• 3p
