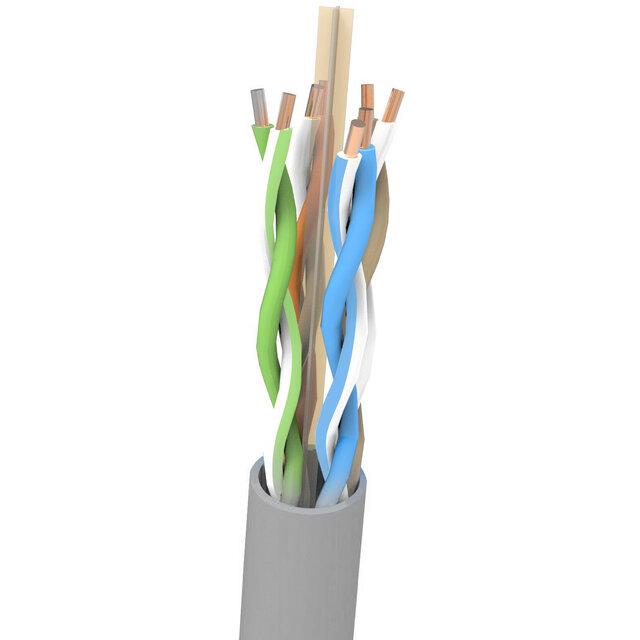

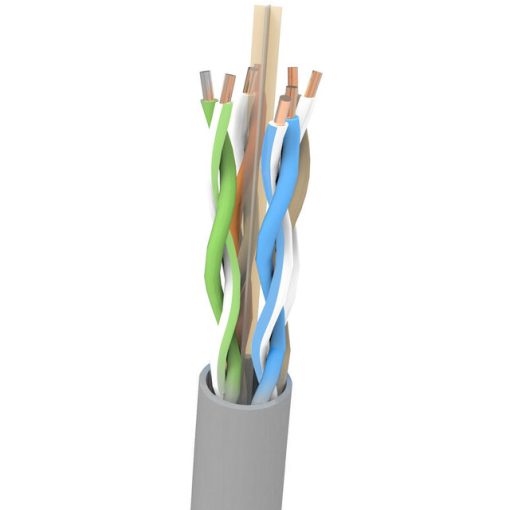

CAT6 CPR:Dca CABLE U/UTP LSOH 305M METER FULL COPPER SOLID

Model: Logon Premium LCP6UUTP3DCA

Features

• Conductor：Material：solid bare copper
• Diameter：0.55±0.005mm /23AWG
• Insulation：Material：HDPE
• Diameter：1.0±0.02mm
• Cross skeleton：4.5*0.45mm
• Rip cord：optional
• Jacket：Material：LSZH
• Diameter：6±0.5mm
• Thickness：≥0.5mm
• Cable Lenght: 305m

Specifications

Physical Characteristics

• Conductor Elongation ratio：≥15%
  Insulation Tensile strength：≥16MPa
  Insulation Elongation ratio：≥300%
  Jacket Tensile strength：≥10.0MPa
  Jacket Elongation ratio：≥125%

Electrical Characteristics（20℃）

• Linear resistance：≤9.5Ω/100m
• insulation resistance：≥5000MΩ/km
• Mutual capacity 0.8kHz：≤5.6nF/100m
• Unbalance capacity：≤330pF/100m
• Characteristic impedance:100±15Ω
• Dielectric strength:DC.1kV.1min no break

Install info

• Working temperature：-20℃ to +60℃
• Bending radius：≥10×out diameter

Standard

• ISO/IEC 11801,IEC-61156-5, TIA 568.2-D,EN50173
• EN50575,EN60754,EN61304, RoHS 2011/65/EU,
• REACH EC 1907/2006
• RoHS 2011/65/EU REACH EC 1907/2006
