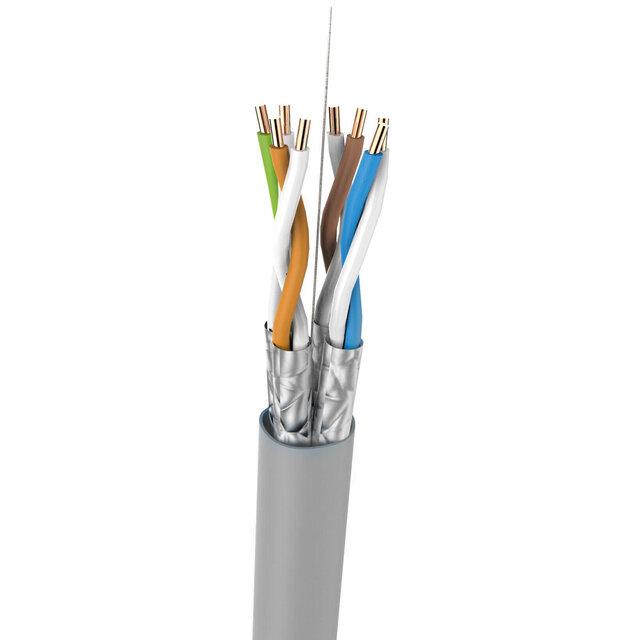

CAT6 CPR:Cca CABLE U/FTP LSOH 305M METER FULL COPPER SOLID

Model: Logon Premium LCP6UFTP3CCA

Features

• Conductor：Material：solid bare copper
• Diameter：0.55±0.005mm /23AWG
• Insulation：Material：SKIN-FOAM-SKIN PE
• Diameter：1.34±0.02mm
• Overlap rate：≥25%
• Drain wire：1*0.4mm tinned copper
• Rip cord：optional
• Jacket：Material：LSZH
• Diameter：7.7±0.5mm
• Thickness：0.5mm Average
• Cable Lenght: 305m

Specifications

Physical Characteristics

• Conductor Elongation ratio：≥15%
• Insulation Tensile strength：≥15MPa
• Insulation Elongation ratio：≥200%
• Jacket Tensile strength：≥9.0MPa
• Jacket Elongation ratio：≥100%

Electrical Characteristics（20℃）

• Linear resistance：≤9.5Ω/100m
• insulation resistance：≥5000MΩ/km
• Unbalance capacity：≤330pF/100m
• Dielectric strength :DC.1kV.1min no break

Fire Performance

• Flame spread: FS≤2.0m Total heat release:THR1200s≤30MJ
• Heat release rate：Peak HRR≤60kW 15MPa. Fire growth rate index:FIGRA≤300Ws-1
• A Single Cable Vertical flame progagationr： H≤425mm

Install info

• Working temperature：-20℃ to +60℃
• Bending radius：≥10×out diameter

Standard

• ISO/IEC 11801,IEC-61156-5, TIA 568.2-D,EN50173
• EN50575,EN60754,EN61304, RoHS 2011/65/EU,
• REACH EC 1907/2006
• RoHS 2011/65/EU REACH EC 1907/2006
