BKT U/UTP LSOH CAT6 BLUE 23AWG 305M FULL COPPER DCA

Model: BKT 10151013.305

Cable U/UTP LSHF cat.6 BKT 405 wire blue Dca -s2,d2,a1

Specifications

Application

• Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
• IEEE 802.3: 10BASE-T; 100BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T
• IEEE 802.5: 16MB, ISDN, TPDDI, ATM
• Power over Ethernet (PoE / PoE+ / PoE++)

Standards

• EN 50173-1
• EN 50288-6-1
• EN 50399
• EN 50575
• ISO/IEC 11801-1
• IEC 61156-5
• ANSI/TIA-568.2
• IEEE 802.3af/at/bt

Flame Resistance

• LSHF (LSOH, FRNC): IEC 60332-1, IEC 61034, IEC 60754-2
• CPR: ClassDca -s2,d2,a1 – EN 50399, EN 50575

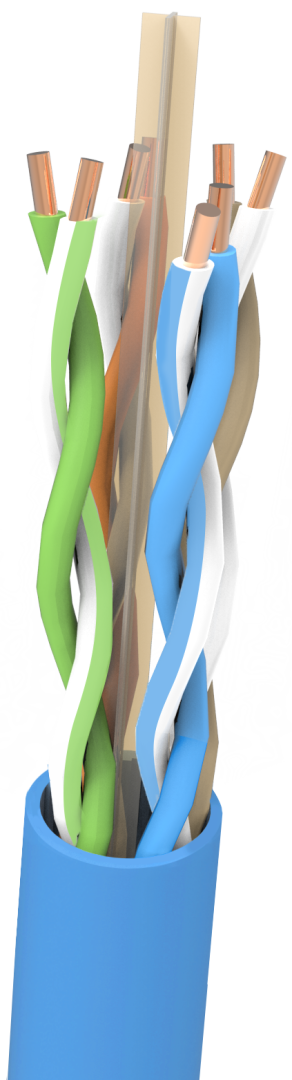

Construction

• Conductor: Bare copper wire Ø 0,54mm (AWG23)
• Insulation: Polyethylene Ø 0,95mm
• Twisting: 2 cores to the pair
• Cable lay up: 4 pairs to the core, non metallic cross separator (spline)
• Sheath: LSHF (LSOH, FRNC) blue RAL 5012

Mechanical Properties ( At 20°C)

• Bending radius:
  • installation: 4 x D
  • installed: 8 x D
• Temperature range:
  • during operation: -20°C to +60°C
  • during installation: 0°C to +50°C

Electrical Properties

• DC Loop Resistance ≤ 176 Ω/km
• Resistance unbalance ≤ 2 %
• Insulation resistance: [500 V] / ≥ 5000 MΩkm
• Mutual capacitance: [800 Hz] / nom. 48 nF/km
• Capacitance unbalance: [pair/ground] / ≤ 1500 pF/km
• Characteristic impedance: [100 MHz] / 100 ± 5 Ω
• Nominal Velocity of Propagation: NVP / 67 %
• Propagation Delay: ≤ 535 ns/100m
• Delay Skew: ≤ 20 ns/100m
• Test Voltage: [DC, 1min] 1000 V
• Coupling attenuation: ≥ 40 dB
• Separation clasification according to EN 50174-2 „b”

Useful Properties

• Fire Load: 316 MJ/km – 0.087 kWh/m
• Tensile force: 100N

Technical Data

• Cable Type: J-2YH 4x2x0.54
• Declaration of Performance (DoP): 11213344
• Outder diameter (mm): 5.3
• Weight (kg/km): 36
