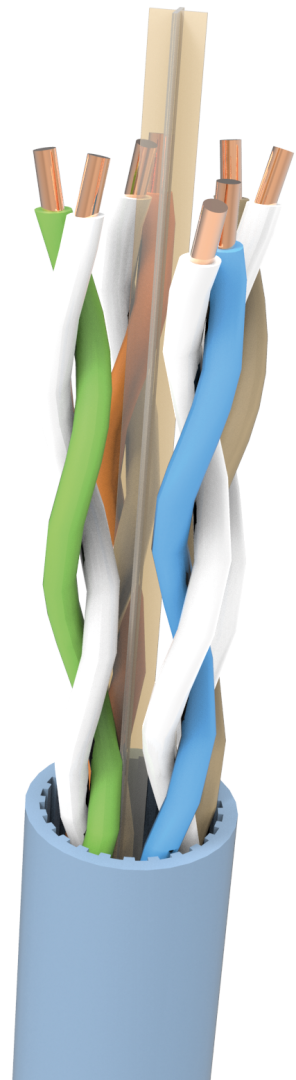

BKT U/UTP LSOH CAT6 BLUE 23AWG 305M FULL COPPER ECA

Model: BKT 10150582.305

Cable U/UTP LSOH cat. 6 BKT 405 wire blue (305m)



Application

• Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
• IEEE 802.3: 10BASE-T, 100BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T
• IEEE 802.5: 16MB, ISDN, TPDDI, ATM
• Power over Ethernet (PoE / PoE+)

Standards

• EN 50173-1
• EN 50288-6-1
• EN 50399
• EN 50575
• ISO/IEC 11801
• IEC 61156-5
• ANSI/TIA 568C.2
• IEEE 802.3at

Flame Resistance

• LSHF (LSOH, FRNC): IEC 60332-1, IEC 61034, IEC 60754-2
• CPR: Klasa Eca – EN 50399, EN 50575

Construction

• Conductor: Bare copper wire Ø 0,5mm (AWG23)
• Insulation: Polyethylene Ø 0,95mm
• Twisting: 2 cores to the pair
• Cable lay up: 4 pairs to the core, non metallic cross separator (spline)
• Sheath: PVC alt. LSHF (LSOH, FRNC) blue RAL 5012

Mechanical Properties

• Bending radius:
  • • installation: 4 x D
    • installed: 8 x D
• Temperature range:
  • • during operation: -20°C to +60°C
    • during installation: 0°C to +50°C

Electrical Properties

• DC Loop Resistance: = 176 ?/km
• Resistance unbalance: = 2 %
• Insulation resistance: [500 V] = 5000 M?km
• Mutual capacitance: [800 Hz] nom. 48 nF/km
• Capacitance unbalance: [pair/ground] = 1500 pF/km
• Characteristic impedance: [100 MHz] (100 ± 5) ?
• Nominal Velocity of Propagation: NVP 67 %
• Propagation Delay: = 535 ns/100m
• Delay Skew: = 20 ns/100m
• Test Voltage: [DC, 1min] 1000 V

Technical Data

• Cable Type: J-2YY 4x2x0.5
• Outer diameter (mm): 5.3
• Fire load (MJ/km): 316
• Fire load (KWh/m): 0.088
• Tensile force (N): 100
• NVP (%): 67
