BKT U/UTP PVC CAT5e GREY 24AWG 305M FULL COPPER ECA

Model: BKT 10150003.305 (CPR: Eca)

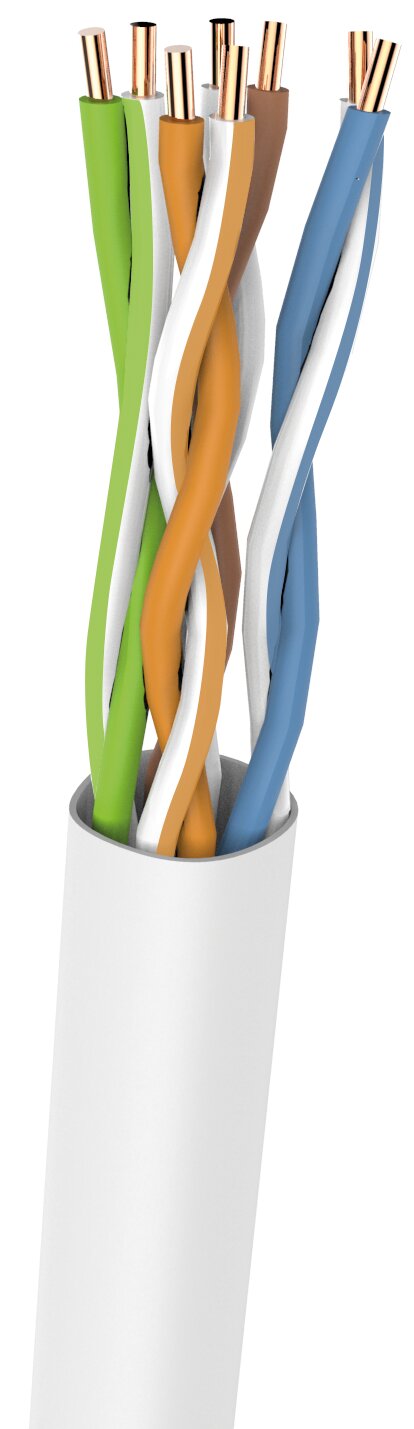

Cable U/UTP PVC cat.5e BKT 275 wire GREY 24AWG (box 305m)



Application:

• Primary (Campus), Secondary(Riser), Tertiary (Horizontal)
• IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T, 2.5GBASE-T
• IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Standards:

• EN 50173-1
• EN 50288-3-1
• EN 50399
• EN 50575
• ISO/IEC 11801
• IEC 61156-5
• ANSI/TIA 568C.2

Flame resistance:

• PVC: IEC 60332-1; CPR: Class Eca – EN 50399, EN 50575

Construction

• Conductor: Bare copper wire Ø 0,5mm (AWG24)
• Insulation: Polyethylene, Ø 0,9mm
• Twisting: 2 cores to the pair
• Cable lay up: 4 pairs to the core
• Sheath: PVC alt. LSHF (FRNC, LSOH), grey RAL 7035

Mechanical properties

• Bending radius:
  • • installation: 4 x D
    • installed: 8 x D
• Temperature range:
  • • during operation: -20°C to +70°C
    • during installation: 0°C to +60°C

Technical data

• Product name: BKT 275 cat.5e U/UTP 4P PVC
• Cable type: J-2YY 4 x 2 x 0.5
• Outer diameter (mm): 5.0
• Fire load:
  • • 365 MJ/km
    • 0.101 KWh/m
• Weight (kg/km): 35
• Tensile force (N): 110
• Nominal velocity of propagation NVP (%): 69

Certified

• 3p
