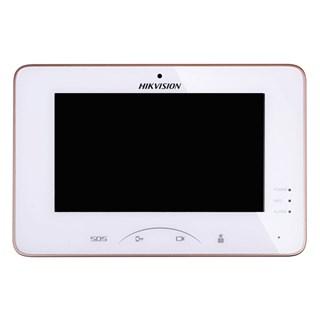

HIKVISION 0.3MP 7″ TOUCH-SCREEN INDOOR STATION

• Video intercom function


• Remote unlocking function


• Resident-to-resident video/audio call


• Live view of HD video


• Voice message function


• Auto-respond and no disturbing mode


• Noise suppression and echo cancellation


• 8-ch zone alarm and SOS calling function


• Community notice


• Convenient installation with the bracket, batch configuration, and power over video/audio distributor

System parameters

• Processor: High-Performance Embedded SOC Processor


• Operation system: Embedded Linux Operation System

Video parameters

• Camera: CMOS 0.3 MP, Mechanical Switch


• Video compression standard: H.264


• Resolution: 640 x 480


• Video frame rate: PAL: 25 fps, NTSC: 30 fps

Display parameters

• Display screen: 7-Inch Colorful TFT LCD


• Display resolution: 800 × 480


• Operation method: Capacitive Touch Screen, Touch Key


• Operation interface: Flattened UI Operation Interface



Audio parameters

• Audio input: Built-in Omnidirectional Microphone


• Audio outputBuilt-in Loudspeaker


• Audio compression standard: G.711 U


• Audio compression rate: 64 Kbps


• Audio quality: Noise Suppression and Echo Cancellation

Network parameters

• Ethernet: 10/100 Mbps Self-Adaptive Ethernet


• Network protocol: TCP/IP, SNMP, SIP, RTSP

Alarm parameters

• Alarm input: 8-ch Alarm Input Sensor

Device  interfaces

• Network interface: 1 RJ-45 10/100Mbps Self-Adaptive Ethernet Interface


• RS-485:  1 RS-485 Half-Duplex Port


• I/O output 2


• TF card (micro SD card): TF Card, Support Max. 32GB

General

• Power supply: 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) 12 VDC


• Power consumption: =10 W


• Working temperature -10° C to + 55° C (14° F to 131° F)


• Working humidity: 10% to 90%


• Dimensions(L× W× H): 217mm × 142mm × 26mm


• Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
